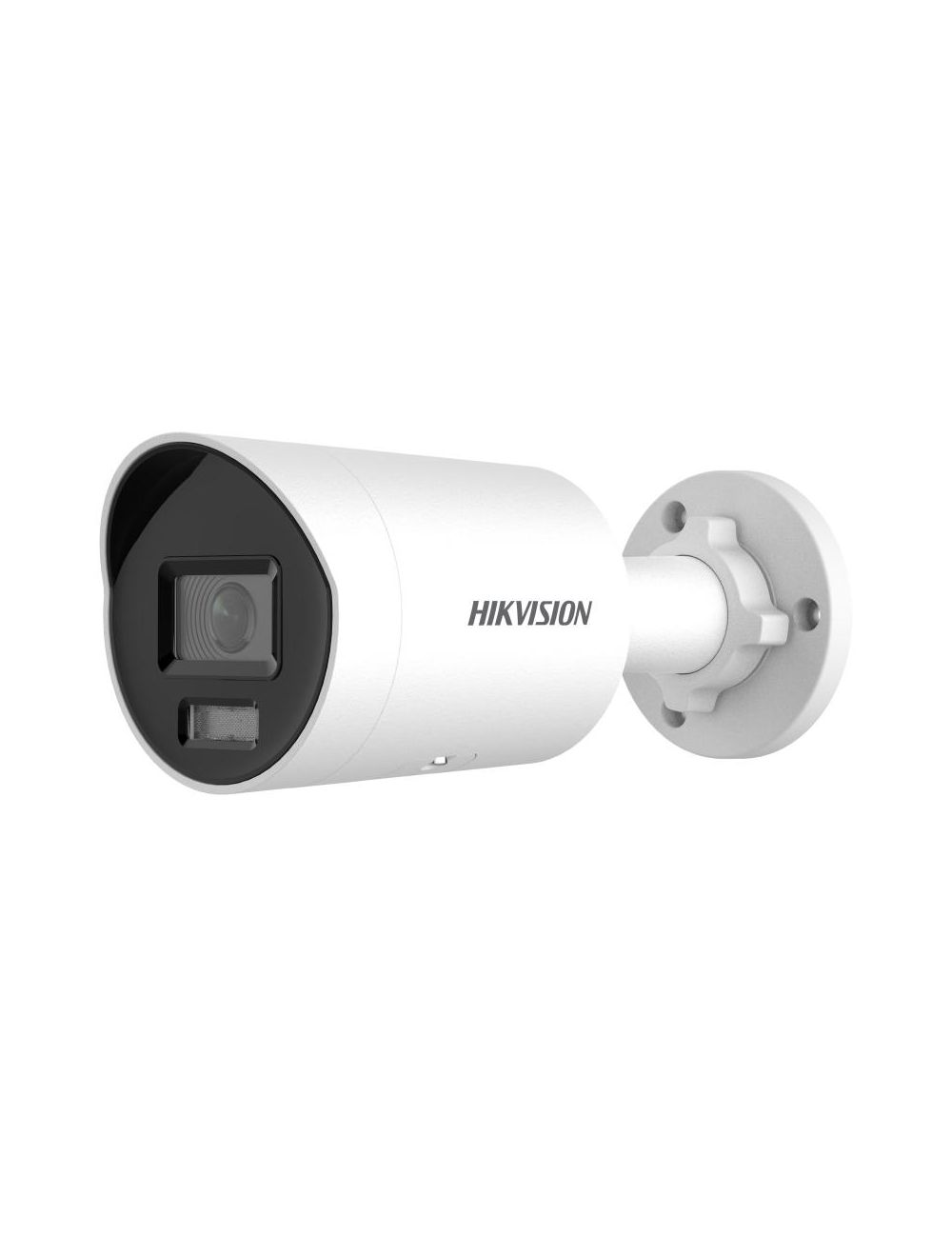

Hikvision DS-2CD2046G2H-IU, 4MP 2.8mm fixed mini bullet network camera
€ 199,95
4MP Outdoor AcuSense Powered-by-DarkFighter fixed mini bullet network camera
Beschikbaarheid:
Niet op voorraad
SKU
DS-2CD2046G2H-IU-2.8MM-W
Bijpassende producten
Selecteer items om ze aan het mandje toe te voegen of
Hikvision DS-2CD2046G2-IU-2.8MM
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
- High quality imaging with 4 MP resolution
- Excellent low-light performance powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time auto security
- IP67 water and dust resistant
| SKU | DS-2CD2046G2H-IU-2.8MM-W |
|---|---|
| Merk | Hikvision |
| DS-2CD2046G2H-IU | |
| Camera | |
| Image sensor | 1/3" Progressive Scan CMOS |
| Max Resolution | 2688x1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Day&Night | IR cut filter |
| Shutter time | 1/3s to 1/100,000s |
| Angle adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Lens | |
| Lens type | Fixed focal lens |
| Focal length & FOV | 2.8mm: horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° |
| Lens mount | M12 |
| Aperture | F1.0 |
| Iris type | Fixed |
| Depth of field | 1.9 m to ∞ |
| DORI | |
| DORI | 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
|
| Supplement light type | IR |
| Range | Up to 40m |
| Smart supplement light | Yes |
| IR Wavelength | 850nm |
| Video | |
| Main stream | 50Hz: 25fps (2688x1520, 1920x1080, 1280x720) 60Hz: 30fps (2688x1520, 1920x1080, 1280x720) |
| Sub stream | 50Hz: 25fps (1280x720, 640x480, 640x360) 60Hz: 30fps (1280x720, 640x480, 640x360) |
| Third stream | 50Hz: 10fps (1920x1080, 1280x720, 640x480, 640x360) 60Hz: 10fps (1920x1080, 1280x720, 640x480, 640x360) Note: Third stream is supported under certain settings |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Note: Third stream is supported under certain settings |
| H.264 type | Baseline Profile/Main Profile/High Profile |
| H.265 type | Main profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit rate control | CBR/VBR |
| Scalable video coding (SVC) | H.264 and H.265 encoding |
| Region of interest (ROI) | 1 fixed region for main stream and sub stream |
| Audio | |
| Audio type | -U: mono sound |
| Audio compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | -U: 64Kbps (G.711ulaw/G.711alaw)/16Kbps (G.722.1)/16Kbps (G.726)/16-64Kbps (AAC-LC)/32-192Kbps (MP2L2)/8-320 Kbps (MP3) |
| Audio sampling rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment noise filtering | -U: Yes |
| Image | |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image parameters switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled |
| Privacy mask | 4 programmable polygon privacy masks |
| Network | |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, UPnP, NTP, IGMP, IPv4, IPv6, UDP, 802.1X, QoS, FTP, SMTP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, FTP |
| API | Open network video interface (Profile G, S, T), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web browser | Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local Service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Event | |
| Basic event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, E-mail, notify surveillance center, trigger recording, trigger capture, trigger alarm output (-S model supports) |
| Smart Event | Scene change detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Deep learning function | |
| Face capture |
Yes |
| Perimeter protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in microphone | -U: Yes |
| Reset key | Yes |
| General | |
| Storage conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Startup and operating conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Power | 12 VDC ± 25%, 0.45A, max. 5.5W, ∅5.5 mm coaxial power plug, reverse polarity protection PoE 802.3af, class 3, max 7 W |
| Language | 33 |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimensions | Camera: Ø 74.4 mm × 179.2 mm With package: 234 mm × 120 mm × 117 mm |
| Weight | Camera: approx. 525 g. With package: approx: 750 g |
| General function | Heartbeat, mirror, flash log, anti-banding, pixel counter, password reset via email |
| Approval | |
| Protection | IP67 |
| Environment | CE-RoHS |
Of download @ Hikvision camera's.
