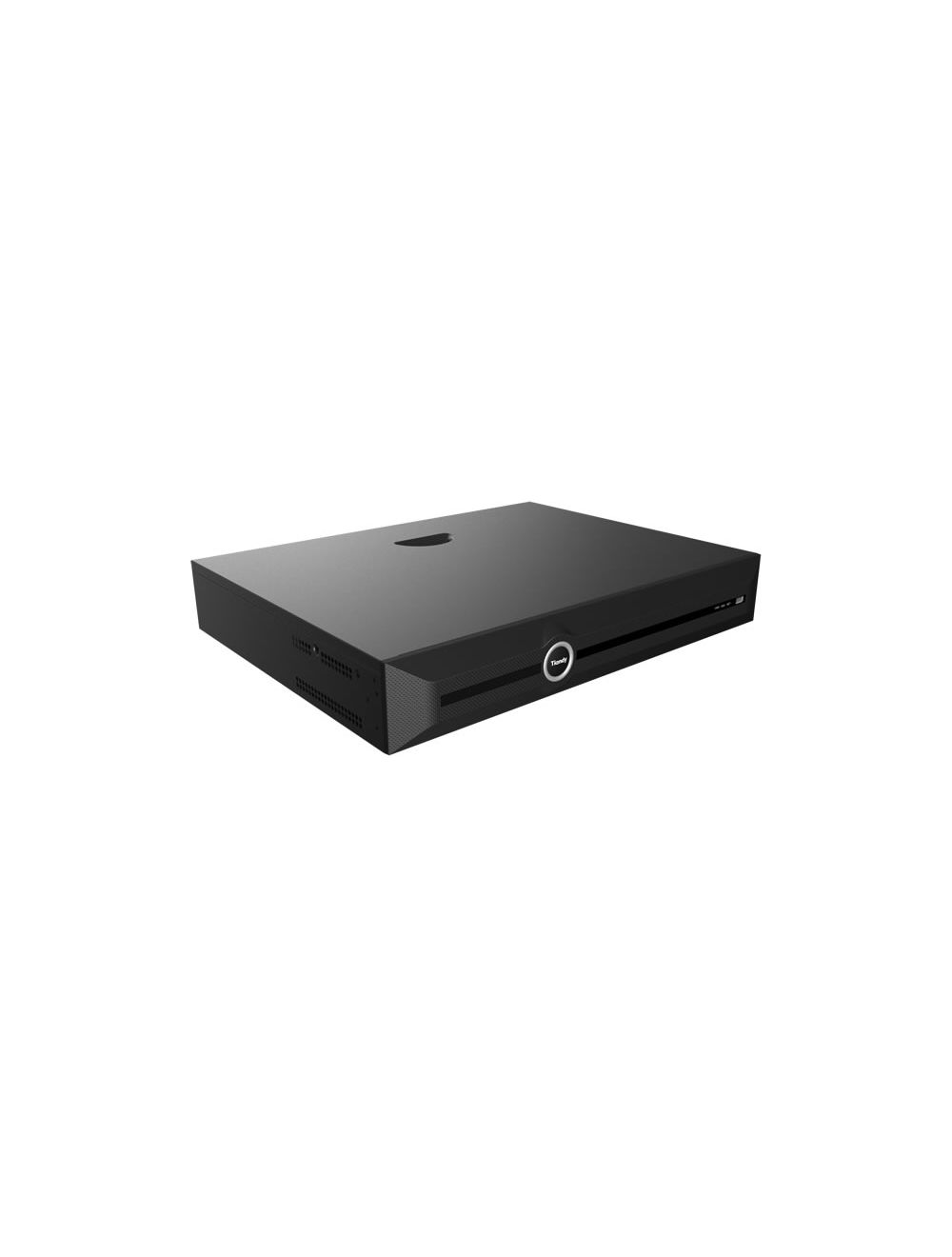

Tiandy TC-R3440 Spec:I/B/N/H/C/V4.0, H.265 4HDD 40ch NVR
€ 569,95
16MP 40-channel NVR, Pro series
Beschikbaarheid:
Op voorraad
SKU
TC-R3440_IBNHCV40
TC-R3440 Spec:I/B/N/H/C/V4.0, H.265 4HDD 40ch NVR
Key features
HD Input
- S+265/H.265/S+264/H.264 video formats
- Connectable to the third-party network cameras
- Supports live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
- HDMI and VGA independant outputs
- HDMI video output at up to 4K resolution
HD Storage
- 4x SATA interface, up to 10TB for each HDD
- S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 2x RJ45 self-adaptive 10/100 Mbps network interface
Various applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
- Connectable to smart IP cameras from Tiandy and the recording, playing back and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Support cloud upgrade
Dimension: 440 (L) x 347 (W) x 75 (H) mm
Productline: Pro
SKU | TC-R3440_IBNHCV40 |
---|---|
Merk | Tiandy |
EANcode | 6971849729534 |
Model: TC-R3440 Spec:I/B/N/H/C/V4.0 | |
Video & Audio | |
Access channel | 40 |
Incoming bandwidth | 400Mbps |
Outgoing bandwidth | 400Mbps |
Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/QCIF |
Preview decoding capability | 16MP*2, 12MP*3, 8MP*4, 6MP*4, 5MP*6, 4MP*8, 3MP*9, 1080P*16, 720P*32, 4CIF*40 |
Playback decoding capability | 16MP*2, 12MP*3, 8MP*4, 6MP*4, 5MP*6, 4MP*8, 3MP*9, 1080P*16, 720P*16 |
Video output | Independent HDMI and VGA outputs |
HDMI output | HDMI: 800*600 (60Hz), 1024*768 (60Hz), 1280*720 (50Hz/60Hz), 1280*800 (60Hz), 1366*768 (60Hz), 1440*900(60Hz), 1920*1080 (50Hz/60Hz), 2560*1440 (30Hz/60Hz), 2560x1600 (60Hz), 3840*2160 (30Hz/60Hz) |
VGA output | VGA: 800*600 (60Hz), 1024*768 (60Hz), 1280*720 (50Hz/60Hz), 1280*800 (60Hz), 1366*768 (60Hz), 1440*900 (60Hz), 1920*1080 (50Hz/60Hz) |
Multi-screen display | 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 |
Third party camera access | ONVIF; RTSP |
Audio input | 1-ch, 3.5mm |
Audio output | 1-ch, RCA (Linear, 1KΩ) |
Two-way audio | 1-ch, 3.5mm, using the audio input |
Liveview display | Independent Output: VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 |
Compression | |
Video | S+265/H.265/S+264/H.264 |
Audio | G.711A/G.711U/AAC/ADPCM_DIV4 |
Stream type | Video; Video&Audio |
Network | |
Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP; SRTP; SSH; SSL; TLSv1.2,TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
Mobile phone access | Android, iOS, P2P_A |
System compatibility | ONVIF (profile T/S/G); CGI; SDK |
Web | Firefox52+, Edge89+, Safari11+, Chrome57+, IE10+ |
Record Playback | |
Multi channel playback | 16 |
Record mode | Manual recording; alarm recording; Schedule recording |
Storage | Local HDD/USB storage device |
Backup | USB storage device |
Playback function | Play/Pause/Stop/Slow/Speed/Backward 30s/Forward 30s/Full screen/Backup (video editing)/Step/Digital zoom |
Alarm | |
General alarm | Motion; Mask alarm; Alarm input (IPC); Video loss; Alarm input (NVR); Manual alarm |
Alert alarm | IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; POE overloaded; IPC voltage abnormal; RTC failure |
Intelligent Analytics | |
VCA detection by camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Lens Diagnose; Scene Switch Diagnose; Signal Abnormal Detection; Signal Loss Detection; Plate License Recognition; On Duty Detection; Crowd Detection; Parking Guard; Safety Helmet Detection; Electric Vehicle Testing; People Counting; Link To Tracking; Fireworks detection; Environmental temperature measurement; Face Detection; Human body temperature measurement; Advanced intelligence |
VCA search | Heatmap; Early-warning search; Behavior Search; Plate License search; Search safety helmet; Thermographic retrieval; Duty search; Electric vehicle retrieval; Facial search |
Face Detection by Camera | |
Performance | N/A |
Face attributes | Gender; age; glasses; mouth mask; body temp |
Face picture library | Up to 300 faces; Up to 100000 base images |
Face picture comparison | Cooperate with facial recognition machine |
External Port | |
HDD | 4 SATA ports, up to 10TB for a single HDD. Max HDD capacity varies with environment temperature |
Disk group | 4 disk groups |
RAID | JBOD, RAID0, RAID1, RAID5, RAID6, RAID10 |
eSATA | N/A |
USB | 1x USB 2.0; 1x USB 3.0 |
HDMI | 1x HDMI (supports up to 4K resolution output) |
VGA | 1x VGA |
RJ-45 | 2x RJ-45, 10/100 Mbps self-adaptive Ethernet port |
SATA | 4 SATA interface |
RS232 | N/A |
RS485 | N/A |
Alarm I/O | N/A |
PoE | |
PoE interface | N/A |
PoE gross power | N/A |
Power per PoE port | N/A |
Max current per PoE port | N/A |
General Parameter | |
UI language | Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkisch/ Russian/ Thai/ French/ Polish/ Dutch/ Hebrew/ Arabic/ Vietnamese/ German/ Ukranian/ Portuguese/ Albanian |
Power supply | DC12V 5A |
Power consumption | <15W (HDD not included, idling) |
Operating temperature | -10°C~55°C |
Operating humidity | 10%~90% RH |
Storage temperature | -10°C~55°C |
Storage humidity | 10%~90% RH |
Dimensions | 440 (L) x 347 (W) x 75 (H) mm |
Package dimensions | 540 (L) x 455 (W) x 175 (H) mm |
Gross weight | 5.05 kg |
Net weight | 3.3 kg |
Package kit | NVR, Screw pack, Mouse, Power adapter, Europan standard power cord, 2Ear plate, 4SATA hard disk data cable, 2SATA power cord |
