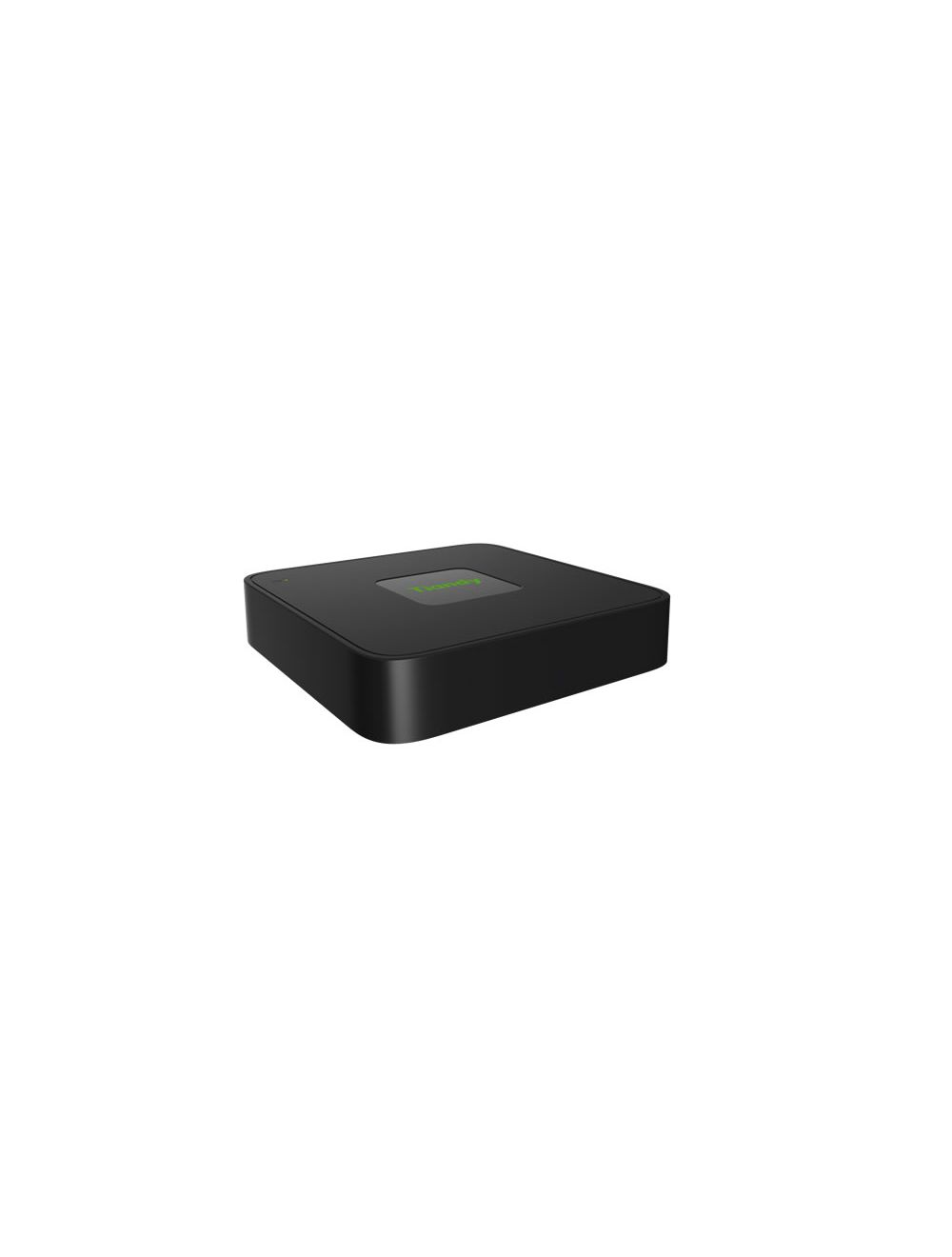

Tiandy TC-R3110 Spec:I/B/P8/L/S, H.265 1HDD 10ch PSE NVR

€ 149,96
10-channel 6MP PoE NVR, Spark series
Beschikbaarheid: Op voorraad
SKU
TC-R3110_IBP8LS

TC-R3110 Spec:I/B/P8/L/S, H.265 1HDD 10ch PSE NVR

Key features

HD Input

  • Plug & Play
  • S+265/H.265/S+264/H.264 video formats
  • Connectable to the third-party network cameras
  • Up to 10-channel input
  • 8 PoE ports
  • Supports live view, storage and playback of the connected camera at up to 6MP resolution

HD Output

  • 1x HDMI output
  • HDMI video output at up to 4K resolution

HD Storage

  • 1x SATA interface, up to 6TB for each HDD
  • S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

  • 1x RJ45 self-adaptive 10/100 Mbps network interface
  • PoE Port: 8× RJ45 self-adaptive 10/100 Mbps network interfaces

Various applications

  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
  • Connectable to smart IP cameras from Tiandy and the recording, playing back and backing up of VCA alarms can be realized
  • Motion detection alarm is supported
  • Support cloud upgrade

Dimension: 200 (L) x 200 (W) x 43 (H) mm

Productline: Spark
spark series

Meer informatie
SKU TC-R3110_IBP8LS
Merk Tiandy
EANcode 6971849728582
Model: TC-R3110 Spec:I/B/P8/L/S
Video & Audio
Access channel 10
Incoming bandwidth 60Mbps
Outgoing bandwidth 40Mbps
Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/QCIF
Preview decoding capability 6MP*1, 5MP*1, 4MP*2, 3MP*2, 1080P*4, 720P*8, 4CIF*10
Playback decoding capability 6MP*1, 5MP*1, 4MP*1, 3MP*2, 1080P*3, 720P*4
Video output 1 HDMI
HDMI output HDMI: 1024*768 (60Hz),(720P) 1280*720 (50Hz/60Hz), 1280*800(60Hz), 1440*900(60Hz), (1080P)1920*1080 (50Hz/60Hz), (4K) 3840*2160 (30Hz)
VGA output N/A
Multi-screen display 1/3/4/5/6/7/8/9/10
Third party camera access ONVIF; RTSP
Audio input N/A
Audio output N/A
Two-way audio N/A
Liveview display N/A
Compression
Video S+265/H.265/S+264/H.264
Audio G.711A/G.711U/AAC/ADPCM_DIV4
Stream type Video; Video&Audio
Network
Network Protocol ARP; DDNS; DHCP; DNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP
Mobile phone access Android, iOS, P2P_A
System compatibility CGI; SDK
Web Firefox52+, Edge89+, Safari11+, Chrome57+, IE10+
Record Playback
Multi channel playback 4
Record mode Alarm recording; Schedule recording
Storage Local HDD
Backup USB storage device
Playback function Play/Pause/Stop/Slow/Speed/Backward 30s/Forward 30s/Full screen/Backup (video editing)
Alarm
General alarm Motion; Mask alarm; Video loss
Alert alarm IP Conflict; MAC Conflict; Network Disconnected; No disk; Illegal Access; Disk Full; Disk R/W error; Video Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; POE overloaded; IPC voltage abnormal; RTC failure
Intelligent Analytics
VCA detection by camera Advanced intelligence
VCA search N/A
Face Detection by Camera
Performance N/A
Face attributes N/A
Face picture library N/A
Face picture comparison N/A
External Port
HDD 1 SATA port, up to 6TB for a single HDD. Max HDD capacity varies with environment temperature
Disk group N/A
RAID N/A
eSATA N/A
USB 2x USB 2.0
HDMI 1x HDMI
VGA N/A
RJ-45 1x RJ-45, 10/100 Mbps self-adaptive Ethernet port
SATA 1 SATA interface
RS232 N/A
RS485 N/A
Alarm I/O N/A
PoE
PoE interface 8x RJ45 self-adaptive 10/100 Mbps network interface
PoE gross power 70W
Power per PoE port 30W
Max current per PoE port 600mA
General Parameter
UI language English/ Spanish/ Italian/ Turkisch/ French/ Polish/ Dutch/ Hebrew/ German/ Ukranian/ Portuguese
Power supply DC48V 1.875A
Power consumption <10W (without HDD&PoE)
Operating temperature -10°C~55°C
Operating humidity 10%~90% RH
Storage temperature -10°C~55°C
Storage humidity 10%~90% RH
Dimensions 200 (L) x 200 (W) x 43 (H) mm
Package dimensions 315 (L) x 235 (W) x 70 (H) mm
Gross weight 1 kg
Net weight 0.45 kg
Package kit Network Video Recorder, Screw pack, Mouse, Power adapter

Download @ Datasheets Tiandy NVR's
