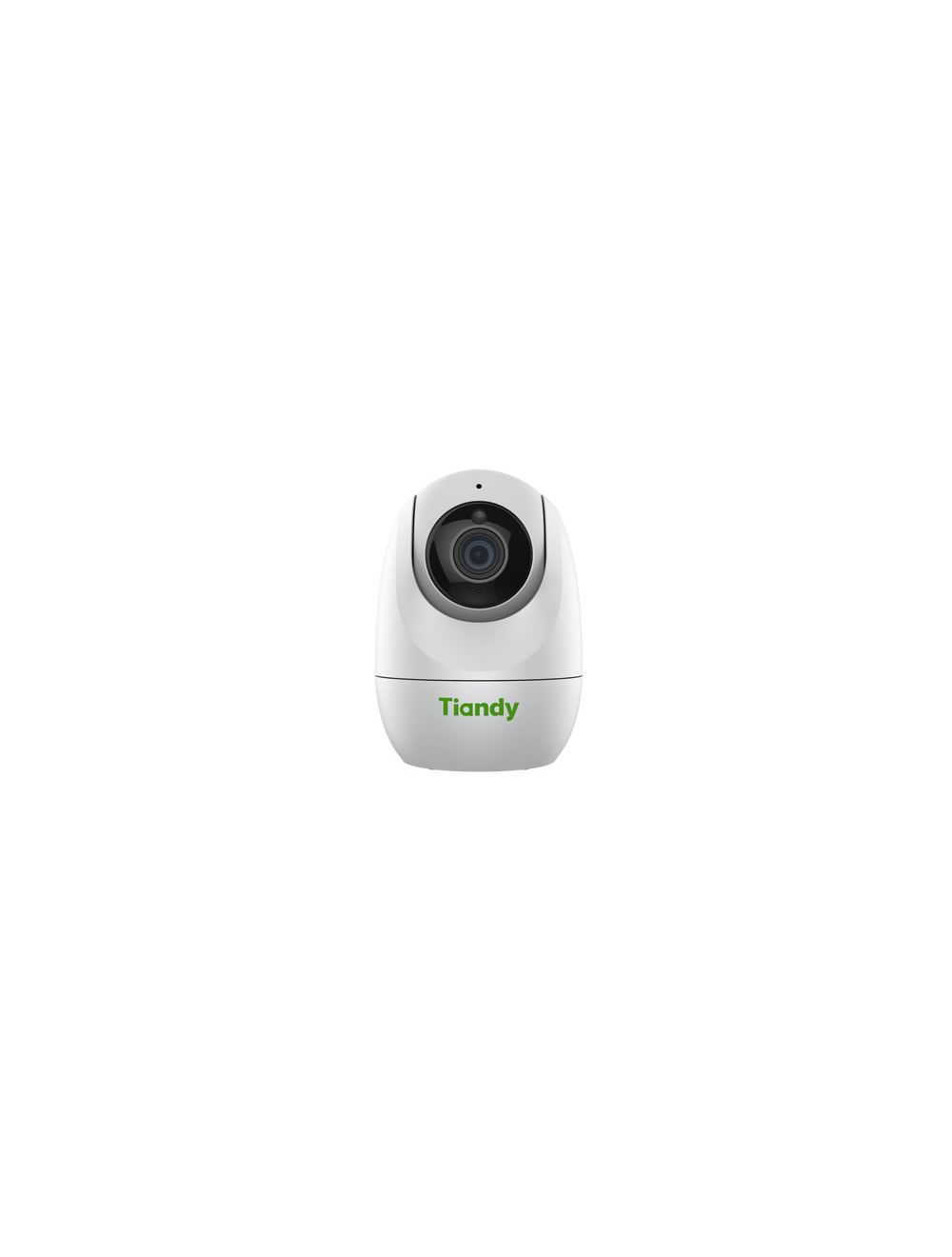

Tiandy TC-H332N Spec:I2W/WIFI/4mm/V4.0, 3MP 2x WIFI EW indoor IP camera
€ 79,94
3MP indoor WiFi PT camera with 360° panoramic view
Beschikbaarheid:
Op voorraad
SKU
TC-H332N_I2WWIFI4V40
Tiandy TC-H332N Spec:I2W/WIFI/4mm/V4.0
Key features
- Plastic Housing
- Resolution up to 2304x1296 @20fps
- S+265/H.265/H.264
- EW (Early warning)
- Min. illumination Color: 0.02Lux@F2.0
- Smart IR, IR Range: 20m
- 2-way Talk,Built-in Mic/Speaker
- 360° panoramic view
- Privacy mode
- Support Human detection and tracking
- Operating Conditions -40°~65°, 0~95% RH
- WiFi
- DC12V ±25%
- Field of view: 82.4° horizontal, 45.4° vertical, 96.2° diagonal
- Dimension: ∅80 (D) x 113 (H) mm
- Productline: WiFi / Super Lite
SKU | TC-H332N_I2WWIFI4V40 |
---|---|
Merk | Tiandy |
EANcode | 6971849729329 |
Model: TC-H332N Spec:I2W/WIFI/4mm/V5.0 | |
Camera | |
Image sensor | 1/2.8" |
Signal system | PAL/NTSC |
Min. Illumination | Color: 0.02 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
Shutter time | 1/1s-1/100000s |
Day & Night | IR-cut filter with auto switch (ICR) |
Zoom | 2x |
Lens | |
Focal length | 4mm |
Zoom speed | N/A |
Aperture range | F2.0 |
Close focus distance | 2m |
Field of view | 82.4° (H); 45.4° (V); 96.2° (D) |
Pan & Tilt | |
Pan range | 350° |
Pan speed | 35°/s |
Tilt range | 0°~115° (default 90°) |
Tilt speed | 19°/s |
3D Position | N/A |
Preset | 256 |
Power-off memory | √ |
Illuminator | |
IR LEDs | 4 |
IR Distance | 20m |
White LEDs | 1, support flash |
Compression standard | |
Video compression | S+265/H.265/H.264 (High profile, main profile, baseline) |
Video bit rate | 32k-4M (main stream), 32k-1M (sub stream) |
Audio compression | G.711A/G.711U |
Audio sampling rate | 8kHz/16kHz |
Image | |
Max. resolution | 3MP, 2304x1296 |
Main stream | PAL: 20fps (2304×1296, 1920×1080, 1280×720, 704x576, 640x480) NTSC: 20fps (2304×1296, 1920×1080, 1280×720, 704x480, 640x480) |
Sub stream | PAL: 20fps (704×576, 704×288, 352×288, 640×360) NTSC: 20fps (704×480, 704×240, 352×240, 640×360) |
Third stream | N/A |
HLC | √ |
WDR | DWDR |
Image stabilization | N/A |
White balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
AGC | √ |
Noise reduction | 2D/3D |
ROI | N/A |
OSD | 16*16/32*32 adaptable size, total 1 region |
Picture overlay | N/A |
Privacy mask | 4 regions |
Image setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Flip | √ |
Defog | Digital |
Feature | |
Alarm trigger | Mask alarm, disk full, disk R/W error, IP Address conflict |
Video analytics | N/A |
Early Warning (EW) | √ |
AutoTracking | Yes, based on human detection |
Network | |
ANR | √ |
Protocols | HTTP, TCP, UDP, DHCP, RTMP, RTSP, FTP, DNS, NTP |
System compatibility | ONVIF (Profile S/T), SDK, CGI, RTSP |
Remote connection | ≤2 |
User/Host | Up to 8 users, 4 user levels |
Client | Easy7 Smart Client |
Mobile client | EasyLive Plus |
Web | IE8+, Firefox, Edge, Safari, Chrome |
WiFi | |
Transmission distance | Up to 30m(s based on actual environment) |
Wireless standard | IEEE802.11b/802.11g/802.11n |
Frequancy range | 2.4 GHz ~ 2.4835 GHz |
Interface | |
Communication interface | 1 RJ45 10M/100M self adaptive Ethernet port |
Audio I/O | N/A |
Alarm I/O | N/A |
Built-in Speaker | √ |
Reset button | √ |
On-board storage | Built-in MicroSD card slot, up to 512GB |
Additional interfaces | N/A |
General | |
Web client language | 2 languages, simplified Chinese/ English |
Operating temperature | -10°C~ 45°C |
Operating humidity | 0-95% RH |
Power supply | DC12V±25% |
Power consumption | 6W |
Heater | N/A |
Material | Plastic |
Dimensions | ∅80x113 mm |
Package dimensions | ∅95x160 mm |
Gross weight | 0.38 kg |
Net weight | 0.22 kg |
