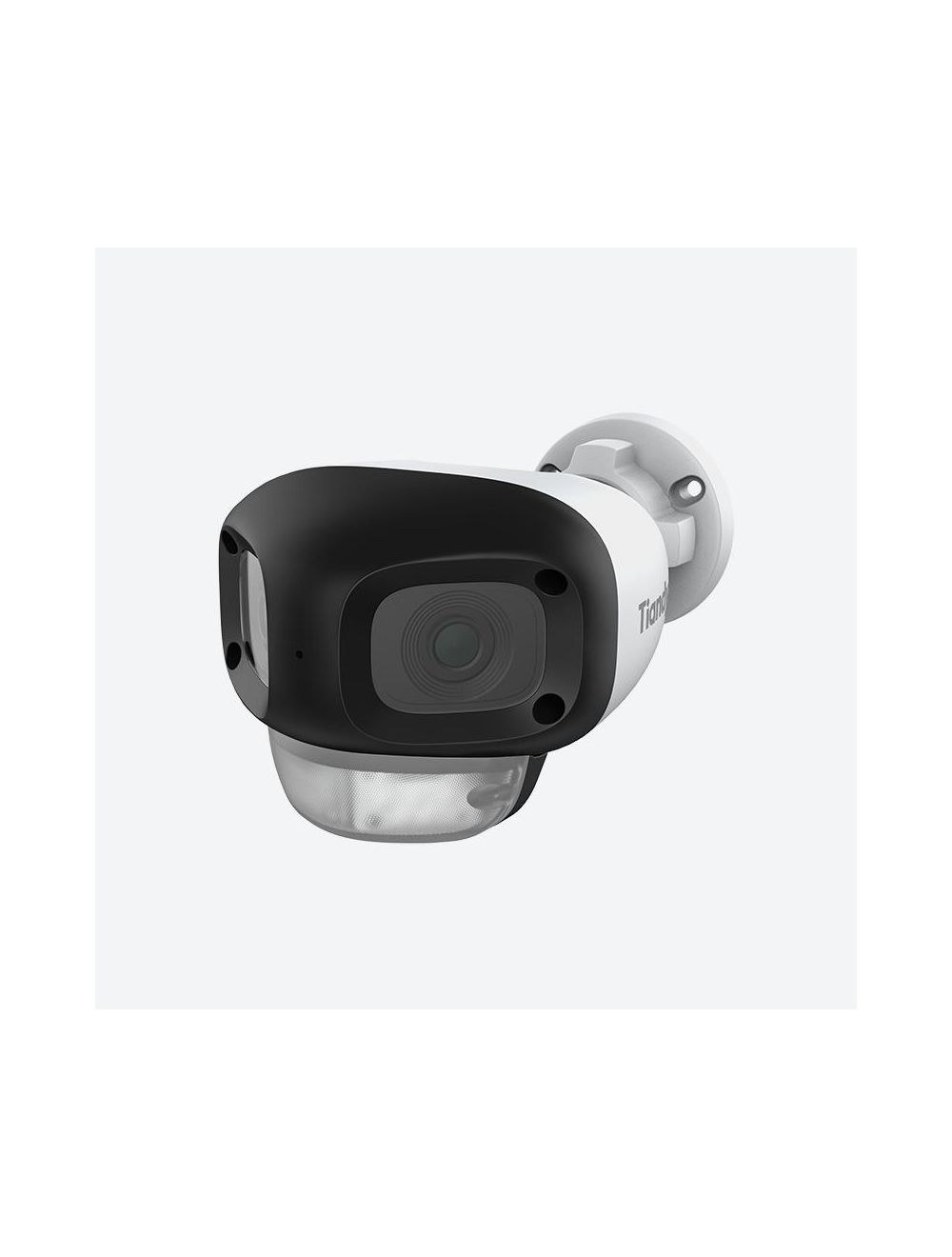

Tiandy TC-C385N Spec: 2ANA-28, 4MP panoramic bullet camera
€ 149,96
4MP outdoor PoE camera | IR range up to 50m | IP67
Beschikbaarheid:
Op voorraad
SKU
TC-C385N_2ANA-28
Tiandy TC-C385N Spec:2ANA-28
Key features
- Plastic housing
- Resolution up to 4MP, 2560x1440@20fps
- S+265/H.265/H.264
- Min. illumination Color: 0.02Lux@F1.6
- Smart IR, IR Range up to 50m
- Support Human/vehicle classification
- Built-in Mic
- Operating Conditions -30°~60°, 0~95% RH
- PoE
- IP67
- DC12V±25%,Max. 7.5W, PoE:IEEE 802.3af,Max.9W
- Field of view: 94.5° horizontal, 52.0° vertical, 108.9° diagonal
- Productline: SK serie
| SKU | TC-C385N_2ANA-28 |
|---|---|
| Merk | Tiandy |
| EANcode | 6976642046833 |
| Model: TC-C385N Spec:2ANA-28 | |
| Camera | |
| Image sensor | 1/3"CMOS |
| Min. Illumination | Color: 0.02 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter time | 1s-1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >52dB |
| Angle adjustment | 0-360°(P); 0-80°(T); 0-360°(R) |
| Lens | |
| Lens type | Fixed focal lens |
| Focal length | 2.8mm |
| Lens mount | M12 |
| Aperture range | F1.6 |
| Aperture type | Fixed |
| Field of view | 94.5° (H); 52.0° (V); 108.9° (D) |
| DORI distance | Detect: 56m Observe: 22.2m Recognize: 11.2m Identify: 5.6m |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Tot 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| White light distance | Tot 30m |
| Compression standard | |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video bit rate | 32k-6Mbps |
| Audio compression | G.711A/G.711U |
| Audio sampling rate | 8kHz/16kHz |
| Image | |
| Max. resolution | 4MP, 2560x1440 @ 20fps |
| Main stream | PAL: 20fps (2560x1440, 2304x1296, 1920x1080) |
| Sub stream | PAL: 20fps (704×576) |
| BLC | Yes |
| HLC | HLC |
| AGC | Yes |
| 3D DNR | Yes |
| White balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Daylight lamp/Filament lamp/Lock white balance |
| OSD | Overlay of additional characters in 1 region, 1 line, with a max of 48 characters; 16x16/32x32/48x48/64x64/adaptive; Lattice |
| Privacy mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General alarm | Smart alarm (human and vehicle detection) |
| Exceptions alarm | IP Address conflict |
| Linkage method | Trigger capture |
| Network | |
| Protocols | RTSP; HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; Multicast |
| System compatibility | ONVIF (Profile S/T), SDK, CGI, Milestone |
| Remote connection | ≤2 |
| Client | Easy7 VMS |
| Mobile client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Interface | |
| Communication interface | 1 RJ45 (10/100 Base-T) |
| Built-in Mic | 1x |
| General | |
| Web client language | 12 languages |
| Operating temperature | -30°C~60°C |
| Operating humidity | 0-95% RH |
| Storage temperature | -30°C~60°C |
| Storage humidity | 10-95% RH (non-condensing) |
| Power supply | DC12V ± 25%, max 7.5W; PoE: 802.3af, max. 9W |
| Protection | Surge4000V; ESD6000V; IP67 |

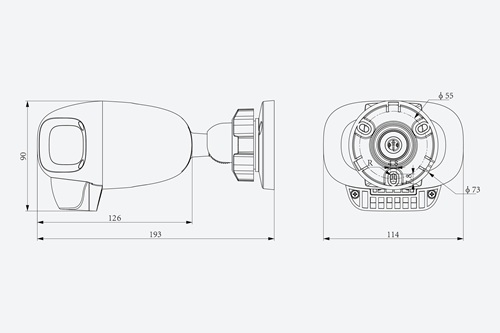

| Dimensions | 193 (L) x 114 (W) x 90 (H) mm |
| Package dimensions | 245 (L) x 140 (W) x 120 (H) mm |
| Gross weight | 0.494 kg |
