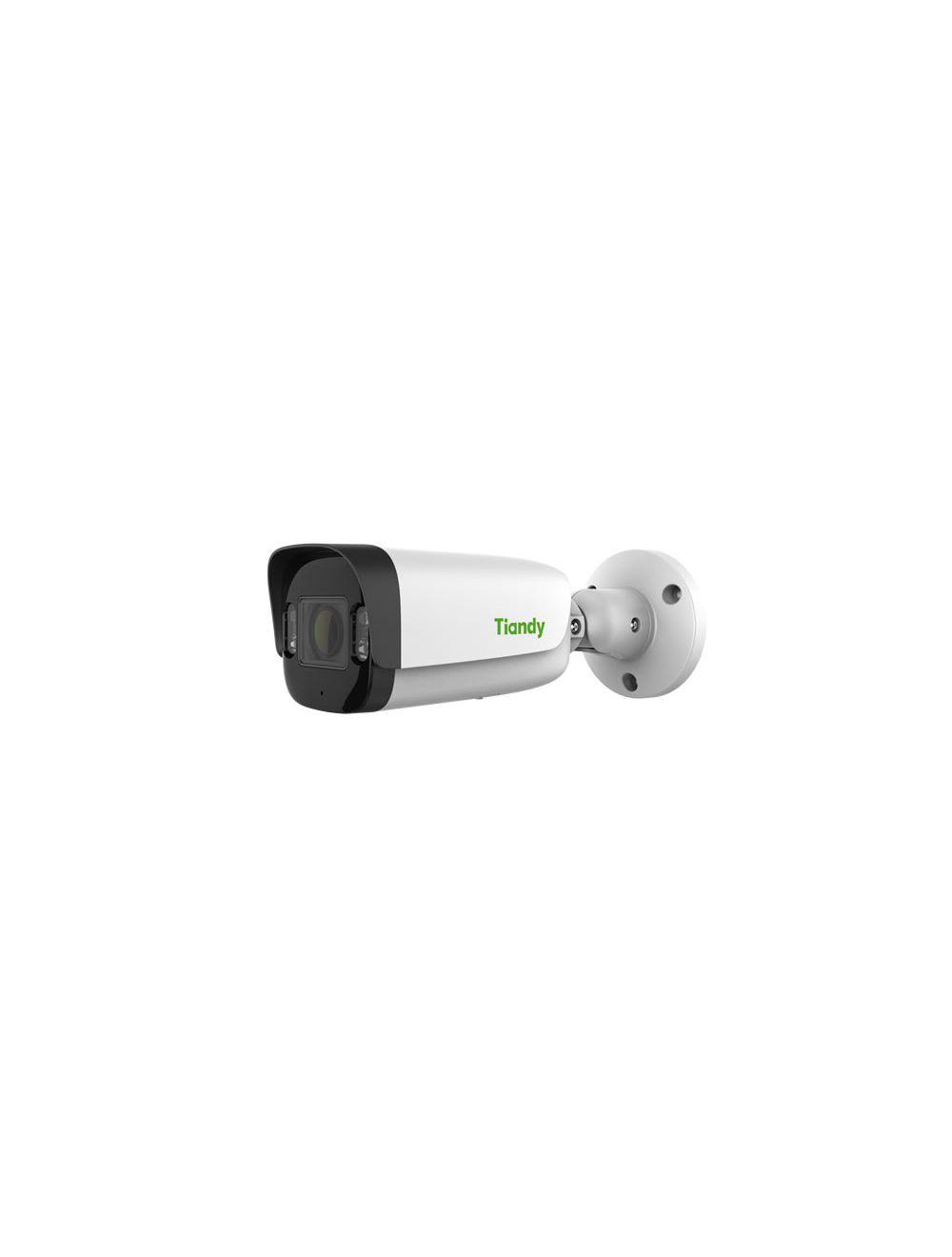

Tiandy TC-C34UV Spec:W/E/Y/M/S/4mm, 4MP Fixed PoE Color Maker Bullet camera

€ 249,95
4MP PoE outdoor security camera
Beschikbaarheid: Op voorraad
SKU
TC-C34UV_WEYMS4

Tiandy TC-C34UV Spec:W/E/Y/M/S/4mm

TC-C34UV

Key features

  • Metal Housing
  • Color maker
  • Resolution up to 2688x1520@30fps
  • S+265/H.265/H.264
  • Min. illumination Color: 0.0001Lux@F1.0
  • 4 Warm lights, 15m
  • Built-in Mic, support max 512GB Micro SD Card
  • Support tripwire and perimeter
  • Support human and vehicle classification
  • 120 dB WDR
  • Operating Conditions -40°~65°, 0~95% RH
  • PoE, DC12V
  • IP67
  • Field of view: 94.5° horizontal, 50.2° vertical, 110.2° diagonal
  • Dimension: 239 (L) x 90 (W) x 90 (H) mm
  • Productline: Lite

Meer informatie
SKU TC-C34UV_WEYMS4
Merk Tiandy
EANcode 6976642040169
Model: TC-C34UV Spec:W/E/Y/M/S/4mm
Camera
Image sensor 1/1.8" CMOS
Min. Illumination Color: 0.0001 Lux @ (F1.0, AGC ON);
B/W: 0 Lux with IR
Shutter time 1s-1/100000s
WDR 120dB
S/N >42dB
Angle adjustment 0-360°(P); 0-90°(T); 0-360°(R)
Lens
Lens type Fixed
Focal length 4mm
Lens mount M12
Aperture range F1.0
Aperture type Fixed
Field of view 94.5° (H); 50.2° (V); 110.2° (D)
DORI distance Detect: 80m
Observe: 31.7m
Recognize: 16m
Identify: 8m
Illuminator
White LEDs 4
White light distance 15m
Compression standard
Video compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video bit rate 32k-16Mbps
Audio compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio sampling rate 8kHz/32kHz/48kHz
Max. resolution 2688x1520 @ 30fps
Main stream PAL: 25fps (2688x1520, 2560x1440, 2304x1296)
50fps (1920x1080, 1280x720)
NTSC: 30fps (2688x1520, 2560x1440, 2304x1296)
60fps (1920x1080, 1280x720)
Sub stream PAL: 25fps (704×576, 704×288, 352×288, 640×360)
NTSC: 30fps (704×480, 704×240, 352×240, 640×360)
Third stream PAL: 25fps (1280x720, 704x576, 704x288, 352x288)
NTSC: 30fps (1280x720, 704x480, 704x240, 352x240)
BLC
HLC
AGC
3D DNR
White balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI 8 regions
Corridor mode
EIS N/A
OSD 5 regions, 16*16/32*32/48*48/64*64/96*96
Picture overlay 1 region; 200*200 BMP 24bits
Privacy mask 4 regions
Defog
Feature
Alarm trigger Motion detection, Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception
Linkage method Send email; trigger recording; trigger capture; notify surveillance center
Video analytics Human/vehicle classification; tripwire; perimeter
Rules of behavior analyse in 1 scene 7
Early Warning (EW) N/A
Network
ANR N/A
Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; EasyDDNS; NTP;
SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; Unicast; Multicast; RTCP; ARP; RTP; SRTP; RTSP;
FTP; SFTP; NAS
System compatibility ONVIF (Profile S/T/G/M), CGI, MILSTONE, RTMP
Remote connection ≤2
Client Easy7 Smart Client
Mobile client EasyLive Plus
Web IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Interface
Communication interface 1 RJ45 10M/100M self adaptive ethernet port
Audio I/O N/A
Alarm I/O N/A
Built-in Mic
Built-in speaker N/A
Reset button
On-board storage Built-in Micro SD card slot, up to 512GB
General
Web client language 19 languages
Simple Chinese / Traditional Chinese / English / Spanish / Korean / Italian / Turkish / Russian / Thai / French / Polish / Dutch / Hebrew / Arabic / Vietnamese / German / Ukrainian / Portuguese / Albanian
Operating temperature -40°C~65°C
Operating humidity 0-95% (non-condensing)
Storage temperature -40°C~65°C
Storage humidity 0-95% (non-condensing)
Power supply DC12V ± 25%, max 8.5W;  PoE: 802.3at, max. 9.5W
Protection Surge protection 2000V; Lightning proof 6000V; IP67

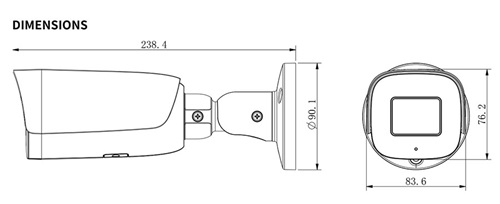

Dimensions 239 (L) x 90 (W) x 90 (H) mm
Package dimensions 280 (L) x 125 (W) x 140 (H) mm
Gross weight 1.28 kg
Net weight 0.92 kg
