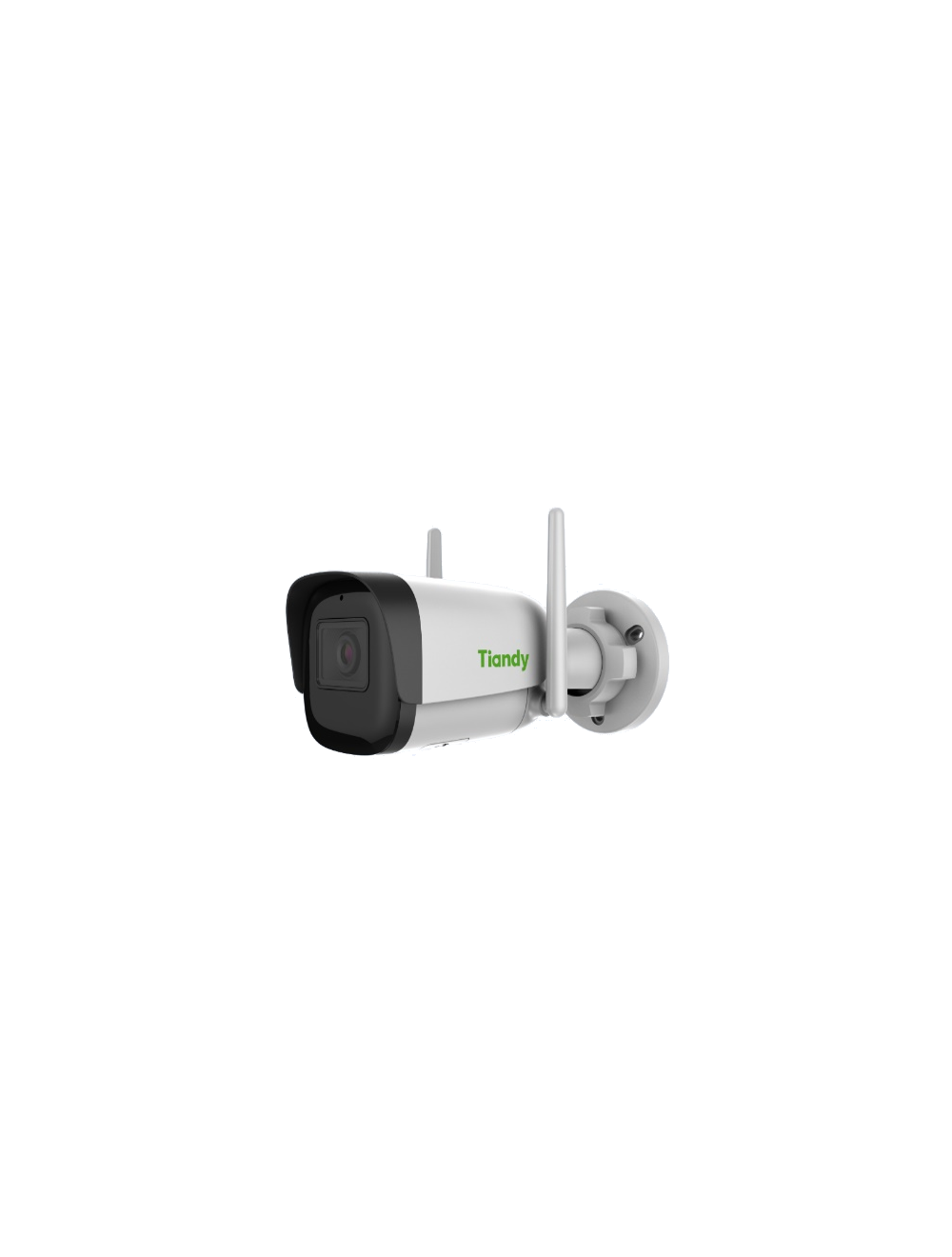

Tiandy TC-C32WN Spec:I5/Y/WIFI/4mm/V4.1, 2MP Fixed IR WiFi bullet camera
€ 109,95
2MP WiFi outdoor security camera
Beschikbaarheid:
Op voorraad
SKU
TC-C32WN_I5YWIFI4V41
Tiandy TC-C32WN Spec:I5/Y/WIFI/4mm/V4.1
Key features
- Metal+Plastic Housing
- Resolution max 1920x1080@30fps
- Image sensor: 1/2.8" CMOS
- S+265/H.265/H.264
- Min. illumination Color: 0.02Lux@F2.0
- Smart IR, IR Range: 50m
- Built-in Mic, SD Card slot, reset button
- Support WiFi
- Operating Conditions -40°~65°, 0~95% RH
- Field of view: 83.3 horizontal, 46.8° vertical
- Dimension: 160 (L) x 81 (W) x 72 (H) mm
- Productline: WiFi / Lite
SKU | TC-C32WN_I5YWIFI4V41 |
---|---|
Merk | Tiandy |
EANcode | 6971849723938 |
Model: TC-C32WN Spec:I5/Y/WIFI/4mm/V4.1 | |
Camera | |
Image sensor | 1/2.8" |
Signal system | PAL/NTSC |
Min. Illumination | Color: 0.02 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
Shutter time | 1s-1/100000s |
Day & Night | Dual IR-cut filter with auto switch (ICR) |
WDR | Digital WDR |
Angle adjustment | Bracket, pan 0~360°, tilt 0~90°, rotate 0~360° |
Lens | |
Lens type | Fixed |
Focal length | 4mm |
Lens mount | M12 |
Aperture | F2.0, fixed |
Field of view | 83.3° (H); 46.8° (V) |
Illuminator | |
IR LEDs | 2 |
IR Distance | Up to 50m |
Wavelength | 850nm |
White LEDs | N/A |
Compression standard | |
Video compression | S+265/H.265/H.264 |
Video bit rate | 32k-6Mbps |
Audio compression | G.711A/G.711U/ADPCM |
Audio bit rate | 8kHz/48kHz |
Image | |
Max. resolution | 1920x1080 |
Main stream | PAL: 25fps (1920×1080, 1280×720, 704x576, 640x480) NTSC: 30fps (1920×1080, 1280×720, 704x480, 640x480) |
Sub stream | PAL: 25fps (704×576, 704×288, 352×288, 640×360) NTSC: 30fps (704×480, 704×240, 352×240, 640×360) |
Third stream | N/A |
ROI | N/A |
OSD | 16*16/32*32 adaptable size, letters such as Week, Date, Time, Total 1 Region |
Picture overlay | N/A |
Privacy mask | 4 regions |
Image setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image enhancement | BLC/3D, DNR/HLC |
Defog | √ |
Feature | |
Alarm trigger | Motion detection, Mask alarm, IP Address conflict |
Video analytics | N/A |
Early Warning (EW) | N/A |
Network | |
Network storage | Yes (only support Tiandy ANR NVR) |
Protocols | HTTP, TCP/IP, UDP, DHCP, RTP, RTSP, FTP, DNS, NTP, IPv4, UPnP |
System compatibility | ONVIF (Profile S/T/G), SDK, P2P (mutually exclusive with profile G) |
Remote connection | ≤2 |
User/Host | Up to 8 users, 4 user levels |
Client | Easy7, EasyLive Plus |
Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
WiFi | |
Channel bandwidth | 20/40MHz |
Wireless standard | IEEE802.11b/g/n |
Frequancy range | 2.4 GHz ~ 2.4835 GHz |
Protocols | 802.11b: CCK, QPSK, BPS 802.11g/n: OFDM/HT |
Security | WPA-PSK/WPA2-PSK |
Transfer rates | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
Wireless range | Up to 50m (performance varies based on actual environment) |
Power consumption | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
Interface | |
Communication interface | 1 RJ45 10M/100M self adaptive Ethernet port |
Audio I/O | Mic in |
Alarm I/O | N/A |
Reset button | √ |
On-board storage | Built-in MicroSD card slot, up to 512GB |
General | |
Web client language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/ Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
Operating temperature | -40°C~ 65°C |
Operating humidity | 0-95% RH |
Power supply | DC12V±25% |
Power consumption | Max 6W (12V) |
Heater | N/A |
Dimensions | 160 (L) x 81 (W) x 72 (H) mm |
Weight | 0.31 kg |
Download @ Datasheets Tiandy camera's
