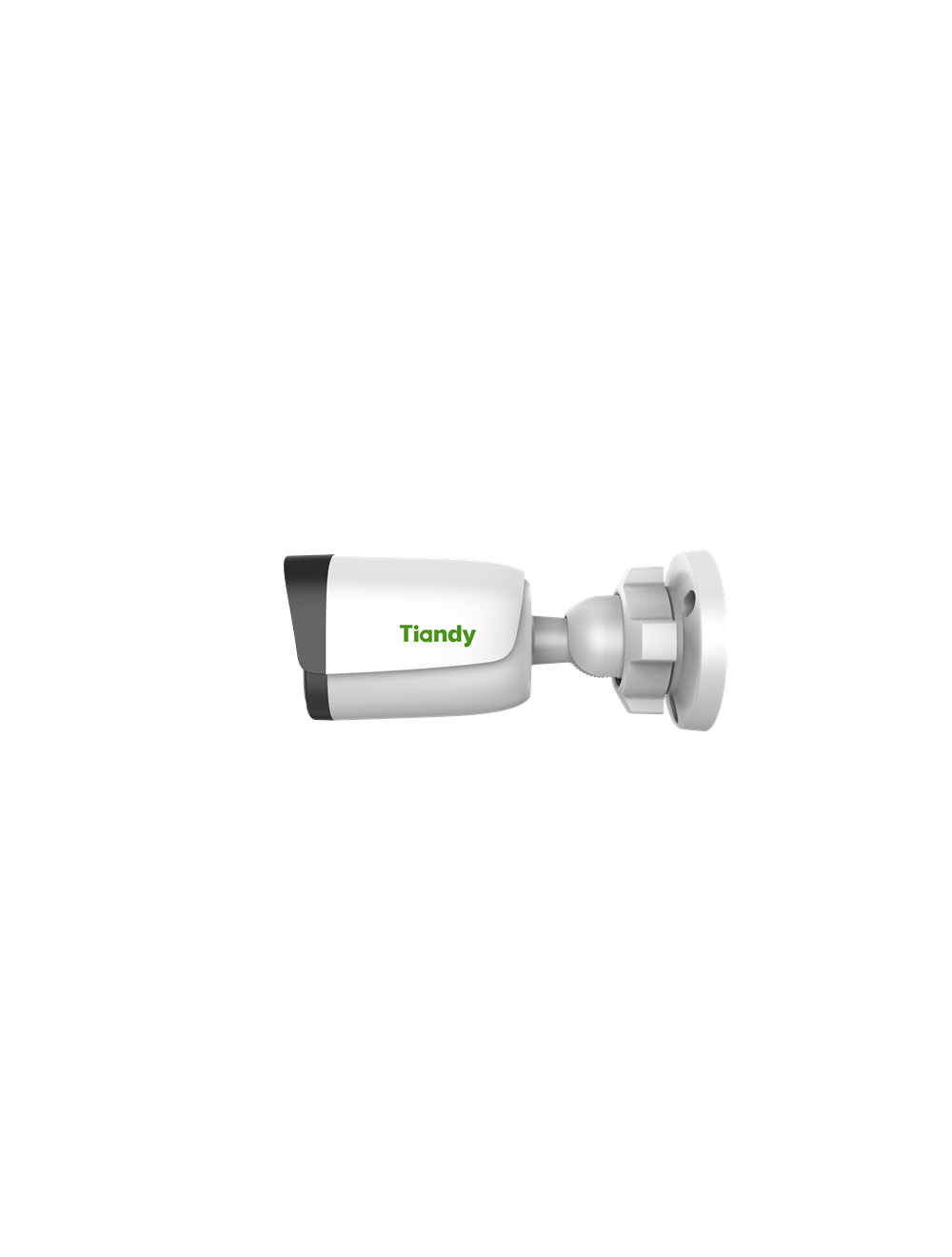

Tiandy TC-C321N Spec:I3/E/Y/2.8mm, 2MP PoE bullet camera
€ 39,95
2MP PoE outdoor security camera
Beschikbaarheid:
Op voorraad
SKU
TC-C321N_I3EY28
Tiandy TC-C321N Spec:I3/E/Y/2.8mm
Features
- Metal+Plastic Housing
- Resolution max 1920x1080@30fps
- Image sensor: 1/2.9" CMOS
- S+265/H.265/H.264B/H.264M/H.264H
- Min. illumination Color: 0.02Lux@(F2.0, AGC ON); B/W: 0 Lux with IR
- IR Range: 30m
- 2 IR LEDs
- Built-in Mic
- Support smart surveillance
- DWDR
- Operating Conditions -30°~60°, 0~95% RH
- Power over Ethernet (802.3af, max 6W)
- IP67
- Field of view: 102.8° horizontal, 57.6° vertical, 117.8° diagonal
- Dimension: 164 (L) x 73 (W) x 73 (H) mm
- Productline: AK
SKU | TC-C321N_I3EY28 |
---|---|
Merk | Tiandy |
EANcode | 6971849728841 |
Model: TC-C321N Spec:I3/E/Y/2.8mm | |
Camera | |
Image sensor | 1/2.9"CMOS |
Min. Illumination | Color: 0.02 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
Shutter time | 1s-1/100000s |
Day & Night | IR-cut filter with auto switch (ICR) |
WDR | DWDR |
S/N | >37dB |
Angle adjustment | 0-360°(P); 0-80°(T); 0-360°(R) |
Lens | |
Lens type | Fixed focal lens |
Focal length | 2.8mm |
Lens mount | M12 |
Aperture range | F2.0 |
Aperture type | Fixed |
Field of view | 102.8° (H); 57.6° (V); 117.8° (D) |
DORI distance | Detect: 40m Observe: 15.9m Recognize: 8.0m Identify: 4.0m |
Illuminator | |
IR LEDs | 2 |
IR Distance | 30m |
Wavelength | 850nm |
Compression standard | |
Video compression | S+265/H.265/H.264B/H.264M/H.264H |
Video bit rate | 32k-4Mbps |
Audio compression | G.711A/G.711U |
Audio sampling rate | 8kHz |
Image | |
Main stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) |
Sub stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
BLC | √ |
HLC | √ |
AGC | √ |
3D DNR | √ |
White balance | Auto/Semi-auto/Manual/Sunshine/Nature light/Warm light lamp/Daylight lamp/Filament lamp/Lock white balance |
OSD | Overlay of additional characters in 1 region, 1 line, with a maximum of 48 characters per region; 16*16/32*32/48*48 |
Privacy mask | 4 black static areas |
Defog | √ |
Feature | |
Alarm trigger | Motion detection; IP Address conflict |
Network | |
Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, TLS v1.2, IPv4, Telnet, Unicast |
System compatibility | ONVIF (Profile S/T), CGI, Milestone |
Remote connection | ≤2 |
Client | Easy7 VMS |
Interface | |
Communication interface | 1*RJ45 10/100 Mbps self adaptive ethernet port |
General | |
Web client language | English |
Operating temperature | -30°C~60°C |
Operating humidity | 95% or less (no condensation) |
Storage temperature | -30°C~60°C |
Storage humidity | 95% or less (no condensation) |
Power supply | PoE: IEEE 802.3af, max. 6W |
Protection | Surge4000V; ESD6000V; IP67 |
Dimensions | 164 (L) x 73 (W) x 73 (H) mm |
Package dimensions | 180 (L) x 90 (W) x 95 (H) mm |
Gross weight | 0.3 kg |
Download @ Datasheets Tiandy camera's
