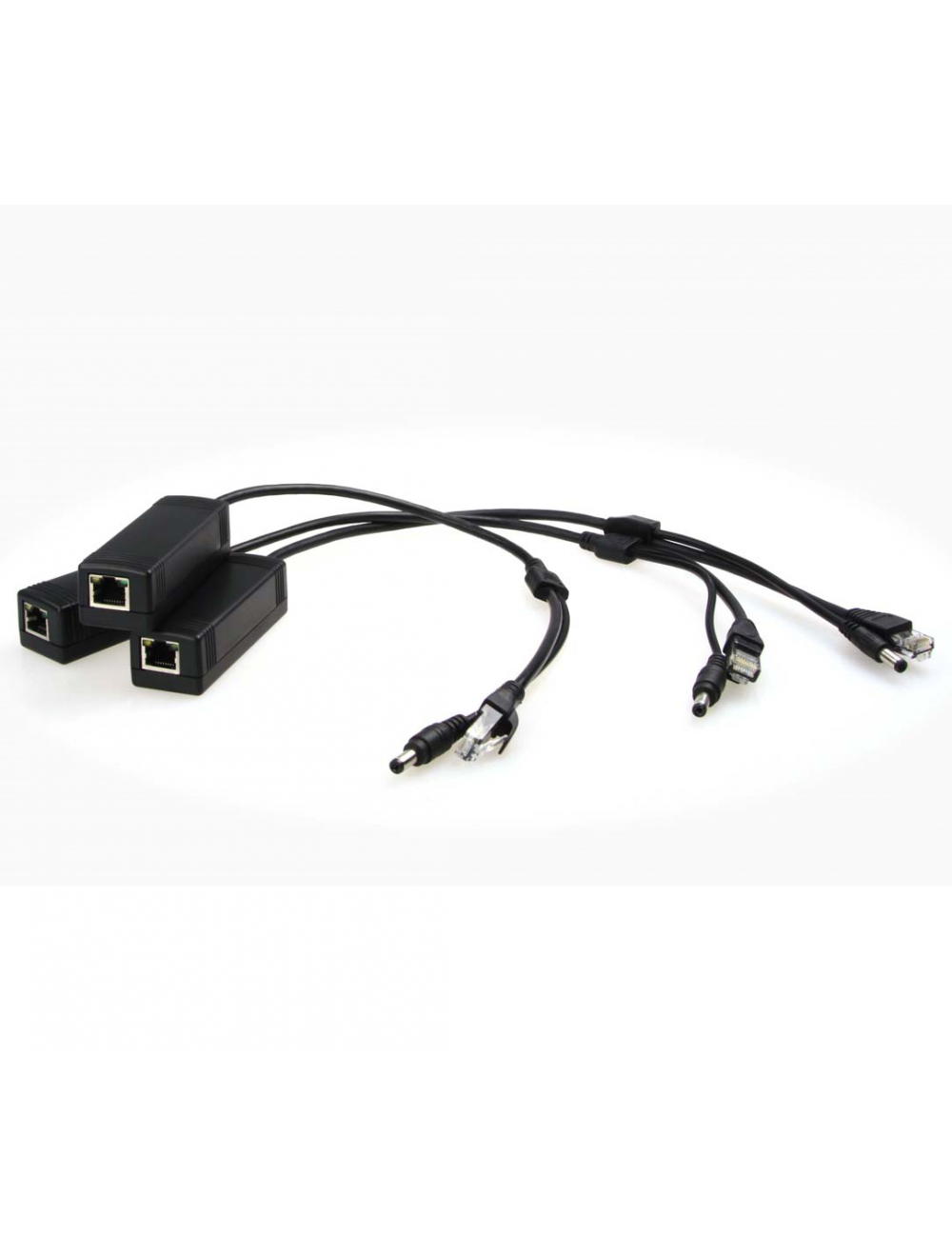

POE Splitter PD5202-AT

€ 31,94
POE Splitter PD5202-AT
Beschikbaarheid: Op voorraad
SKU
PD5202-AT

 Support 10/100M Data Transmission
 DC12V output, used for various small network devices.
 Circuit Insulation blocking, effective protection of powered device.

Application
 ◆HD monitor transmission and power supply
 ◆Wireless AP layout transmission and power supply
 ◆Network telephone transmission , intelligent house and home system
 ◆Intelligent transportation supervisory system(ITS)
 ◆ High-speed Way supervisory/Tele-Communication System
 ◆ Security protection system, TV medical treatment
 ◆ Long-distance Muti-media Schooling, Campus monitoring
 ◆ Long-distance broadcast television transmission system
 ◆ High-building Security Protection, Military Tele-Com projects




Order Information
Model: PD5202-at
Description: 10/100M PoE Splitter, IEEE 802.3at, DC12V output. Standard power output is 24W.



Power Pin Assignment: Support both Mid-span and End-span

Meer informatie
SKU PD5202-AT
Merk Eupart
Product Name 10/100M PoE Splitter Cable
Product Model PD5202-at
Connector Type 1x RJ45 input port 1x RJ45 output port 1x DC output port
Network Medium Cat5 (UTP) or more
Network Protocol IEEE 802.3 i 10 BASE-T IEEE 802.3 u 100 BASE-TX IEEE 802.3 x Flow Control IEEE 802.3 at Power over Ethernet
PoE Standard IEEE802.3at
PoE Power Supply Type 1/2(+),3/6(-);4/5(+),7/8(-) power supply
Certifications CE,FCC,ROHS
Product Size 505x35x30mm
Working Environment Operating Temperature: 0~55℃;
Storage Temperature: -20~70℃;
Operation Humidity: 90%, non-condensing;
Storage Humidity: 95%, non-condensing
