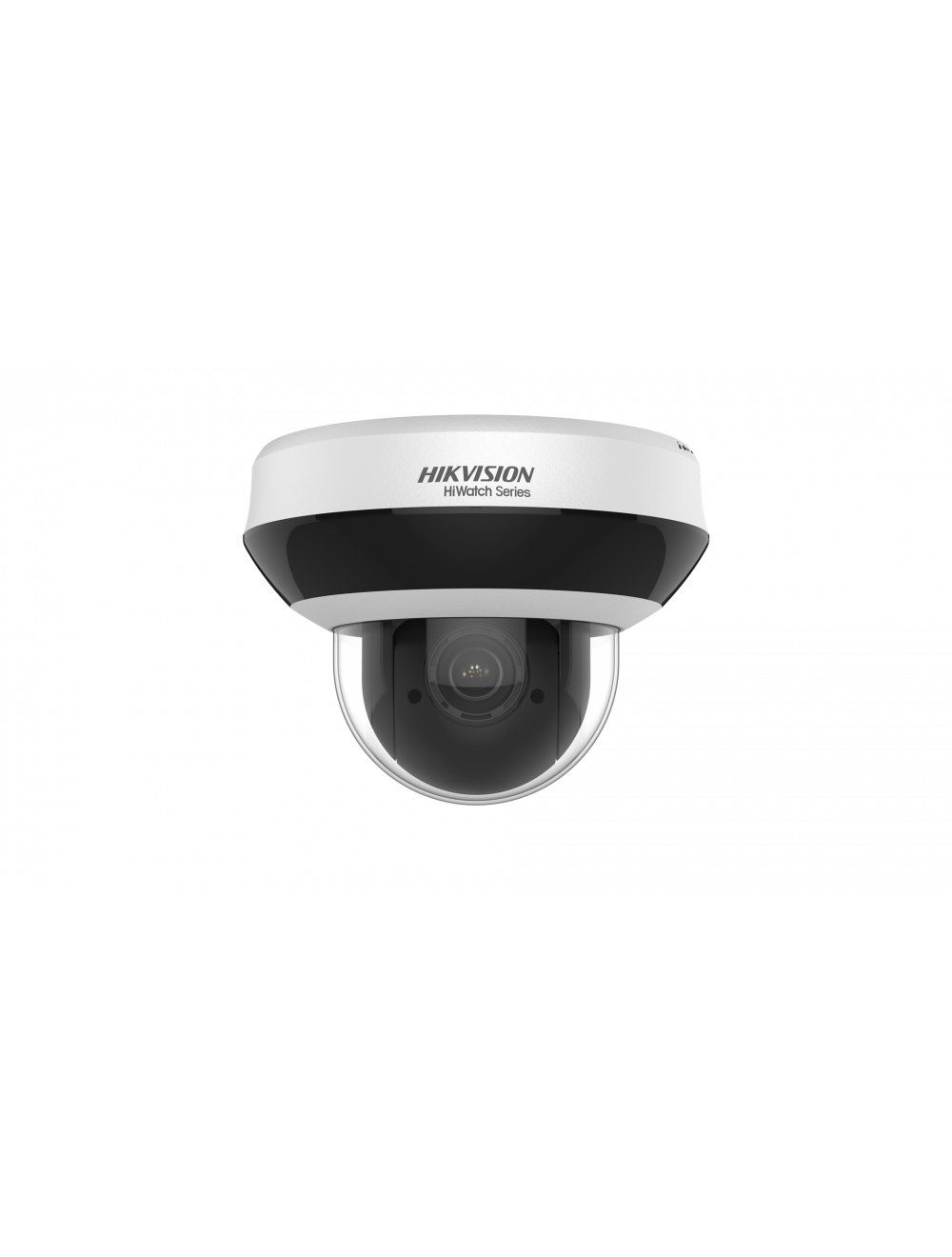

Hikvision HWP-N2404IH-DE3 HiWatch Network PTZ Camera
€ 290,00
HiWatch Series: 4.0 Megapixel 4x IR Network PTZ Camera
Beschikbaarheid:
Op voorraad
SKU
HWP-N2404IH-DE3(F)
- 1/3" progressive scan CMOS
- Up to 2560 × 1440@25fps resolution
- Min. illumination:Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- Up to 20 m IR distance
- 4× optical zoom, 16× digital zoom
- 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Regional Exposure, Regional Focus
- Support H.265+/H.265 video compression
- Built-in microphone
- 12 VDC & PoE
- IK10, IP66
Lees meer over / read more about Hikvision HiWatch series
SKU | HWP-N2404IH-DE3(F) |
---|---|
Merk | Hikvision |
EANcode | 6931847136895 |
HWP-N2404IH-DE3 | |
Camera | |
Image sensor | 1/3" progressive scan CMOS |
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
Gain | Auto/Manual |
Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
Day&Night | IR cut filter |
Digital Zoom | 16x |
Privacy Mask | 24 programmable privacy masks |
Focus Mode | Auto/Semi-automatic/Manual |
WDR (Wide Dynamic Range) | 120 dB WDR |
Lens | |
Focal length | 2.8 to 12 mm, 4x optical zoom |
Zoom speed | App. 2x (optical lens, wide-tele) |
Aperture Range | F1.6 to F2.7 |
Field of View | Horizontal Field of View: 100° to 33° (Wide-tele) Vertical FoV 53° to 18° (Wide-tele) Diagonal FoV 119° to 37,5° (Wide-tele) |
Working distance | 10 mm to 1500 mm (Wide-tele) |
PTZ | |
Movement Range (Pan) | 0° to 330° |
Pan speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
Movement Range (Tilt) | From 0° to 90° |
Tilt Speed | Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
Proportional Zoom | Support |
Presets | 300 |
Power-off Memory | Support |
IR |
|
IR Range | Up to 20m |
Smart IR | Support |
Compression standard | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
H.264 type | Baseline Profile/Main Profile/High Profile |
H.264+ | Support |
H.265 type | Main Profile |
H.265+ | Support |
Video Bit Rate | 32 Kbps to 16384 Kbps |
Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
SVC | Support |
Smart Feature-Set | |
Basic Event | Motion Detection, Video Tampering Detection, Exception |
Smart Event | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
Region of Interest | Main stream, sub-stream, and third stream respectively support two fixed areas |
Image | |
Max. Resolution | 2560 x 1440 |
Main Stream |
50Hz: 25fps (2560 x 1440, 2048 x 1536, 1920 × 1080, 1280 x 960, 1280 × 720) 60Hz: 25fps (2560 x 1440), 30fps (2048 x 1536, 1920 × 1080, 1280 x 960, 1280 × 720) |
Sub-stream |
50Hz: 25fps (704 x 576, 640 × 480, 352 x 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Image Enhancement | 3D DNR, HLC, EIS, Regional Exposure, Regional Focus |
Network | |
Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect |
Simultaneous Live View | Up to 20 channels |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
Web browser | IE, Chrome, Firefox |
Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Audio Interface | 1-ch audio input and 1-ch audio output |
General | |
Working temperature | -20 °C to 60 °C |
Working humidity | 90% or less |
Power Supply | 12 VDC + PoE Max 12W (max 3.9W for IR) |
Protection level | IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material | Aluminum alloy, PC, PC+ABS |
Dimensions | Camera: Ø 130,7 mm × 101,7 mm |
Weight | Approx. 530 g |
Bekijk hier de handleiding van de netwerk PTZ camera.
Beide zijn ook te vinden onder Support/Downloads/Hikvision.
