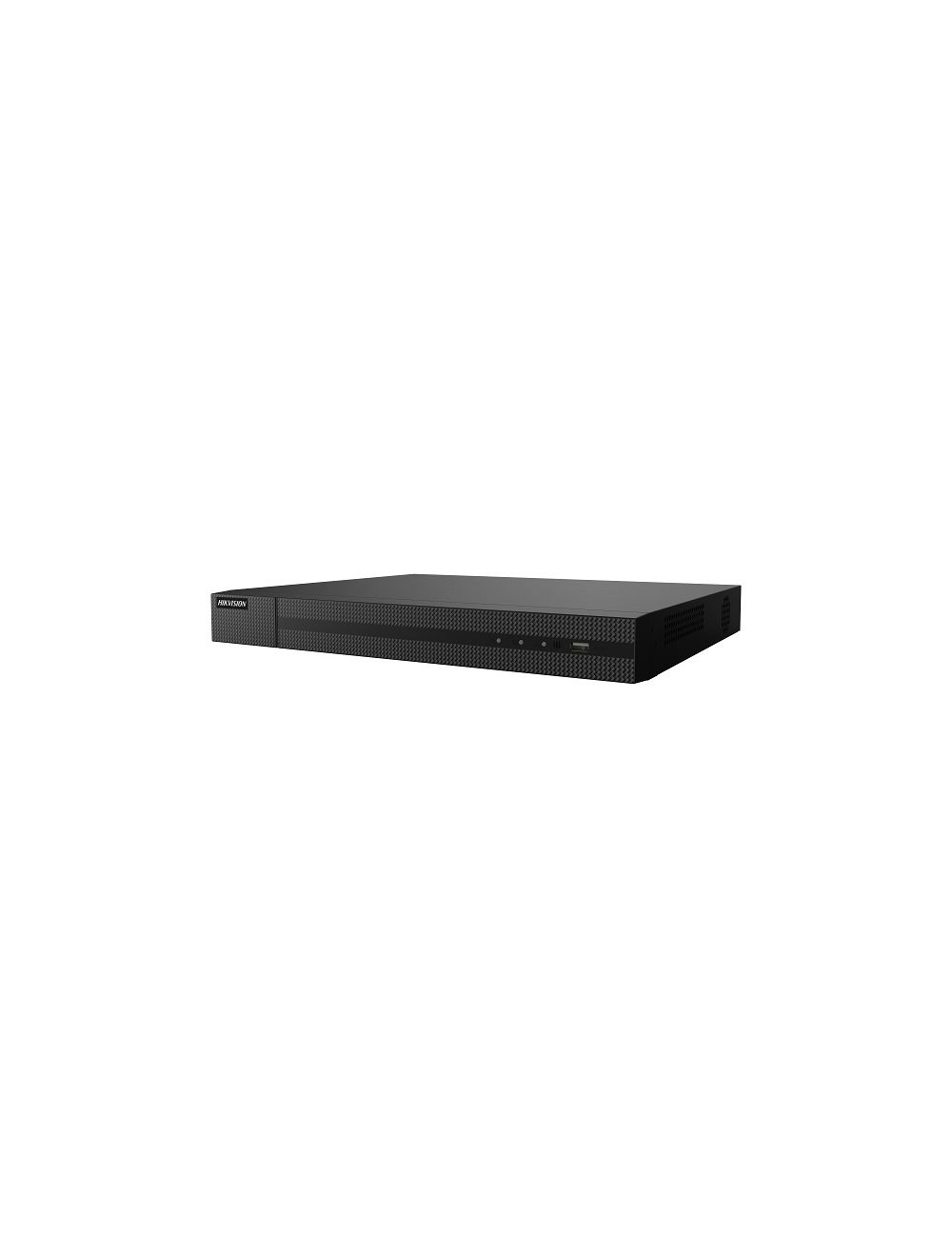

Hikvision HWN-5232MH HiWatch Network Video Recorder
HiWatch series: HWN-5232MH Series Network Video Recorder
Beschikbaarheid:
Op voorraad
Professional and reliable: Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when network is disconnected
Connectable to the thrid-party network cameras
Up to 32 IP cameras can be connected
Recording at up to 8 MP resolution
H.265/H.265+/H.264/H.264+/MPEG4 video formats
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HDMI and VGA independent outputs provided
HDMI Video output at up to 4K (3840 × 2160) resolution
Up to 2 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50 to 70% with the use of H.264+ decoding format
1 self-adaptive 10/100/1000 Mbps network interface
Hik-Connect for easy network management
Lees meer over / read more about Hikvision HiWatch series
Meer informatie
SKU
HWN-5232MH
Merk
Hikvision
EANcode
6954273664947
Model
HWN-5232MH
Video/Audio input
IP Video Input
32-ch
Up to 8 MP resolution
Two-way audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
Recording resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output resolution
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output resolution
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format
H.265+/H.265/ H.264+/H.264/MPEG4
Live view / playback resolution
Up to 8 MP resolution
Synchronous playback
16-ch
Capability
2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
External interface
Network interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface
Front panel: 1 x USB 2.0; Rear panel: 2x USB 3.0
Network
Incoming bandwith
256 Mbps
Outgoing bandwith
160 Mbps
Network management
Network protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA
2 SATA intercaces
Capacity
Up to 6 TB capacity for each HDD
General
Power supply
12 VDC
Power
≤ 40 W
Consumption (without HDD)
≤ 15 W
Working temperature
-10 to +55º C
Working humidity
10 % to 90 %
Dimension
385 × 315 × 52 mm
Weight (without HDD)
≤ 2 kg
Of bekijk / Or view: datasheet HWN-5232MH series NVR
