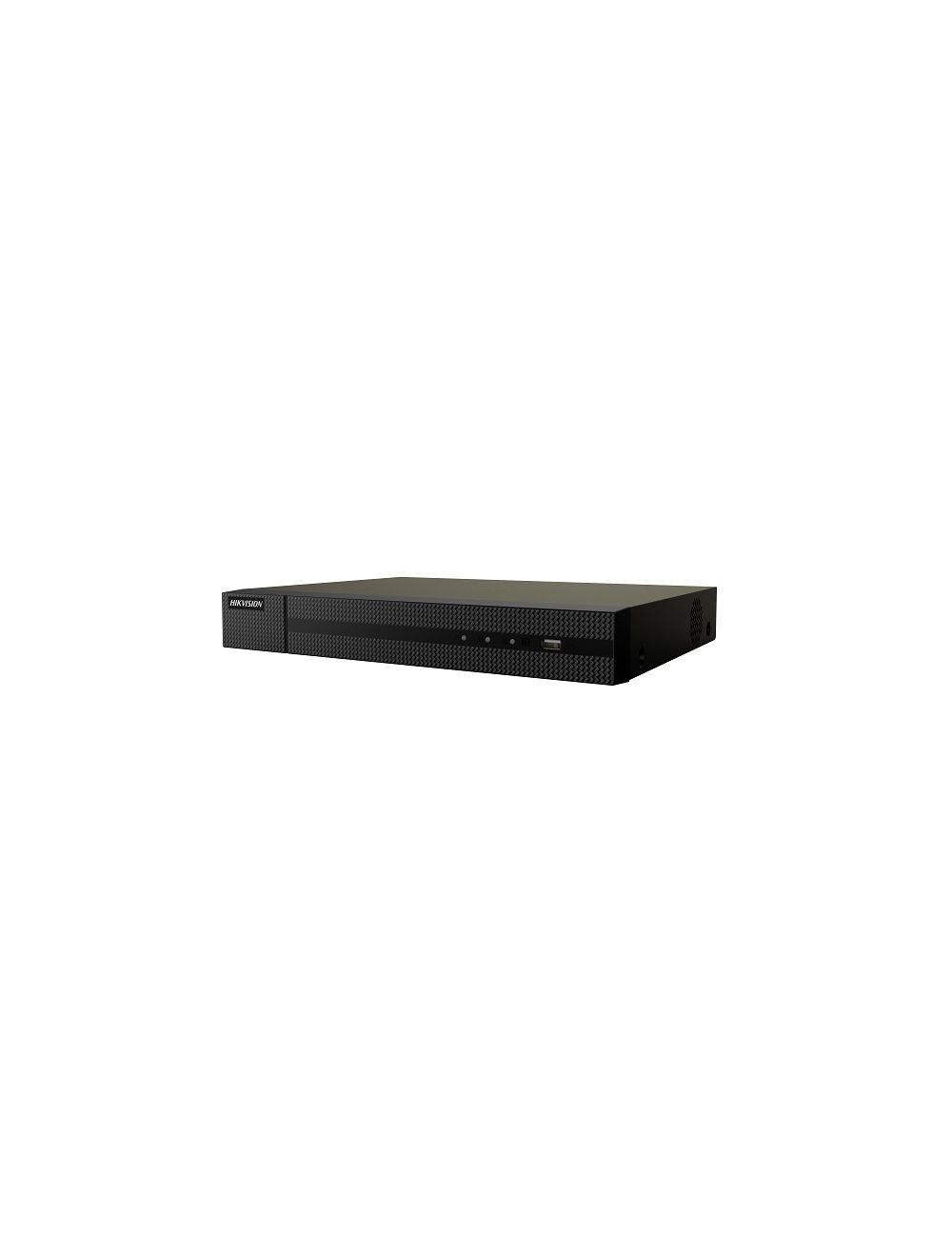

Hikvision HWN-4116MH HiWatch Network Video Recorder
€ 228,00
HiWatch series: HWN-4100 Series Network Video Recorder
Beschikbaarheid:
Op voorraad
SKU
HWN-4116MH(C)
- Connectable to the third-party network cameras
- Up to 16 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- HDMI Video output at up to 4K (3840 × 2160) resolution
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- 1 SATA interface connectable for recording and backup
- 1 self-adaptive 10/100/1000 Mbps network interface
- Hik-Connect for easy network management
Lees meer over / read more about Hikvision HiWatch series
SKU | HWN-4116MH(C) |
---|---|
Merk | Hikvision |
EANcode | 6941264083122 |
Model | HWN-4104MH | HWN-4108MH | HWN-4116MH |
Video and Audio | |||
IP Video Input | 4-ch | 8-ch | 16-ch |
Up to 8 MP resolution | |||
Incoming bandwith | 40 Mbps | 80 Mbps | 160 Mbps |
Outgoing bandwith | 80 Mbps | ||
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz | ||
VGA output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz | ||
Video output mode | HDMI/VGA simultaneous output | ||
CVBS output | N/A | ||
Audio output | 1-ch, RCA (Linear, 1 KΩ | ||
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input | ||
Decoding | |||
Decoding Format | H.265+/H.265/H.264+/H.264 | ||
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
Synchronous playback | 4-ch | 8-ch | 16-ch |
Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) | ||
Stream type | Video, Video&Audio | ||
Auxilliary interface | |||
SATA | 1 SATA interface | ||
Capacity | Up to 8TB capacity for each disk | ||
USB interface | Rear panel: 2 × USB 2.0 | ||
Network | |||
Remote connection | 16 | 64 | |
Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | ||
Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
General | |||
Power supply | 12 VDC, 1.5A | ||
Consumption (without hdd) | ≤ 10 W | ||
Working temperature | -10 to +55º C | ||
Working humidity | 10 % to 90 % | ||
Dimensions | 265 × 225 × 48 mm | ||
Weight (without hard disk) | ≤ 1 kg |
Zie / view: datasheet HWN-4100 series NVR
Bekijk hier de handleiding van de / View manual of network video recorder. Beide zijn ook te vinden onder / Both can also be found under Support/Downloads/Hikvision.
