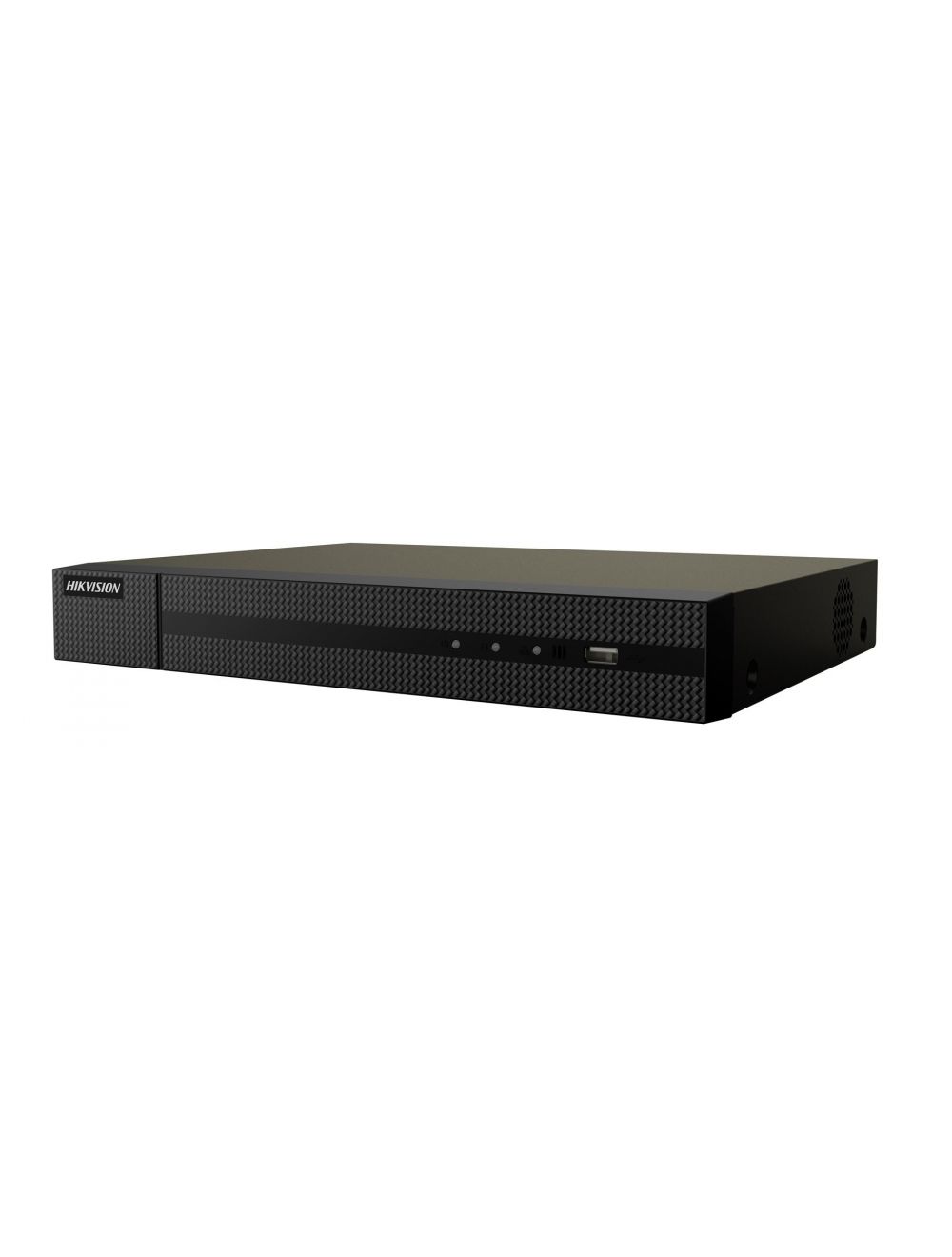

Hikvision HWN-4104MH-4P HiWatch Network Video Recorder
€ 214,00
HiWatch series: HWN-4100 Series Network Video Recorder
Beschikbaarheid:
Op voorraad
SKU
HWN-4104MH-4P
- Connectable to the third-party network cameras
- Up to 4 IP cameras can be connected
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- HDMI Video output at up to 4K (3840 × 2160) resolution
- 1 self-adaptive 10/100/1000 Mbps network interface
- 4 independent PoE network interfaces are provided
- Hik-Connect for easy network management
Lees meer over / read more about Hikvision HiWatch series
SKU | HWN-4104MH-4P |
---|---|
Merk | Hikvision |
EANcode | 6954273661434 |
Model | HWN-4104MH-4P | |
Video and audio | ||
IP Video Input | 4-ch | |
Up to 8 MP resolution | ||
Incoming bandwith | 40 Mbps | |
Outgoing bandwith | 80 Mbps | |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
|
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz | |
Video output mode | HDMI/VGA simultaneous output | |
CVBS output | N/A | |
Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input | |
Decoding | ||
Decoding format | H.265+/H.265/ H.264+/H.264 | |
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF | |
Synchronous playback | 4-ch | |
Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) | |
Stream type | Video, Video & Audio | |
Audio compression | G.711ulaw/G.711alaw/G.722/G.726 | |
Auxiliarry interface | ||
SATA | 1 SATA interface | |
Capacity | Up to 8TB capacity for each disk | |
USB interface | Rear panel: 2x USB 2.0 | |
PoE | ||
Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface | |
Power | ≤ 50 W | |
Supported standard | IEEE 802.3 af/at | |
Network | ||
Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface | |
Remote connection | 16 | |
General | ||
Power supply | 48 VDC | |
Consumption (without HDD) | ≤ 10 W | |
Working temperature | -10 to +55º C | |
Working humidity | 10 % to 90 % | |
Dimension | 265 × 225 × 48 mm | |
Weight (without HDD) | ≤ 1 kg |
Zie / view: datasheet HWN-4104MH-4P NVR
Bekijk hier de handleiding van de / View manual of network video recorder. Beide zijn ook te vinden onder / Both can also be found under Support/Downloads/Hikvision.
