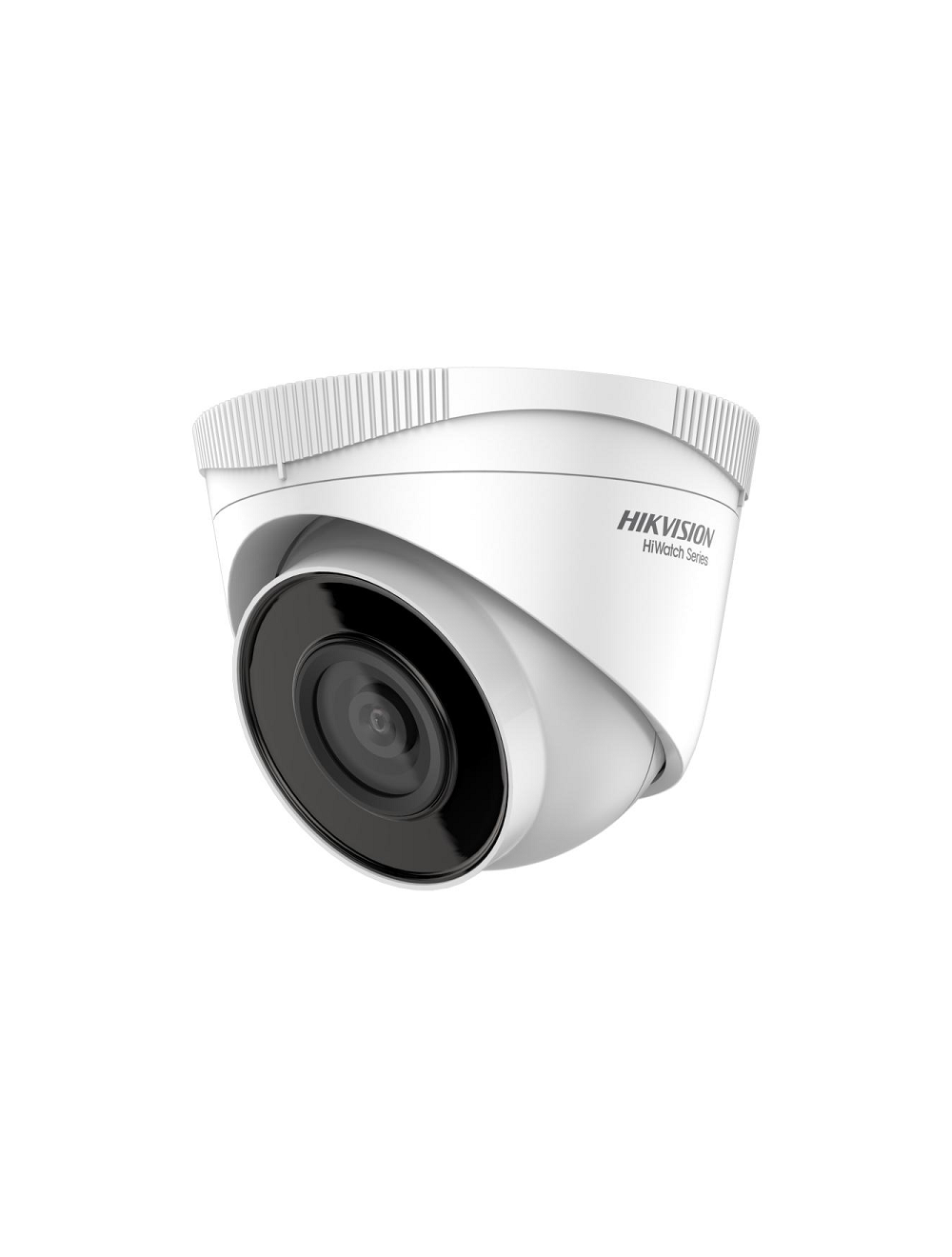

Hikvision HWI-T240HA 4mm Fixed Turret 4MP network camera

€ 132,50
HiWatch Series: 4 MP fixed turret camera met 4 mm lens
Beschikbaarheid: Op voorraad
SKU
HWI-T240HA(4MM)
  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Easy installation with Power over Ethernet (PoE) technology

Read more about Hikvision HiWatch series

Meer informatie
SKU HWI-T240HA(4MM)
Merk Hikvision
HWI-T240HA-4MM
Camera
Image sensor 1/3"CMOS
Max Resolution 2560 x 1440
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Day&Night IR cut filter
Shutter time 1/3s to 1/100,000s
Angle adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens type Fixed focal lens
Focal length & FOV 4mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Lens mount  M12
Aperture F2.0
Iris type Fixed
DORI
DORI D: 79m, O: 31m, R: 15m, I: 7m
Illuminator
Supplement light type IR
Range Up to 30m
Smart supplement light Yes
IR Wavelength 850nm
Video
Main stream 50Hz: 20fps (2560x1440); 25fps (1920x1080, 1280x720)
60Hz: 20fps (2560x1440); 24fps (1920x1080, 1280x720)
Sub stream 50Hz: 25fps (1280x720, 640x480, 640x360)
60Hz: 24fps (1280x720, 640x480, 640x360)
Video compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Bit rate control CBR/VBR
Region of interest (ROI) 1 fixed region for main stream
WDR 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, night, auto, scheduled
Privacy mask 4 programmable polygon privacy masks
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API Open network video interface (Profile S and T), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Web browser Chrome, Firefox, Edge
Event
Basic event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, send email, notify surveillance center, trigger capture
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Storage conditions -30 °C to 60 °C, humidity 95% or less (non-condensing)
Startup and operating conditions -30 °C to 60 °C, humidity 95% or less (non-condensing)
Power 12 VDC ± 25%, 0.4A, max. 5W, ∅5.5 mm coaxial power plug
PoE 802.3af, class 3, 36V to 57V, 0.2A to 0.15A, max 6.5W
Ingress Protection IP67
Material Metal & plastic
Dimensions Camera: Ø 110 mm × 95.2 mm
With package: 150 mm × 150 mm × 141 mm
Weight Camera: approx. 340 g. With package: approx: 560 g
General function Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval
Protection IP67
Environment CE-RoHS, WEEE



Of download de datasheet (pdf).

Bekijk hier de handleiding van de netwerk camera.
Beide zijn ook te vinden onder Support/Downloads/Hikvision.
