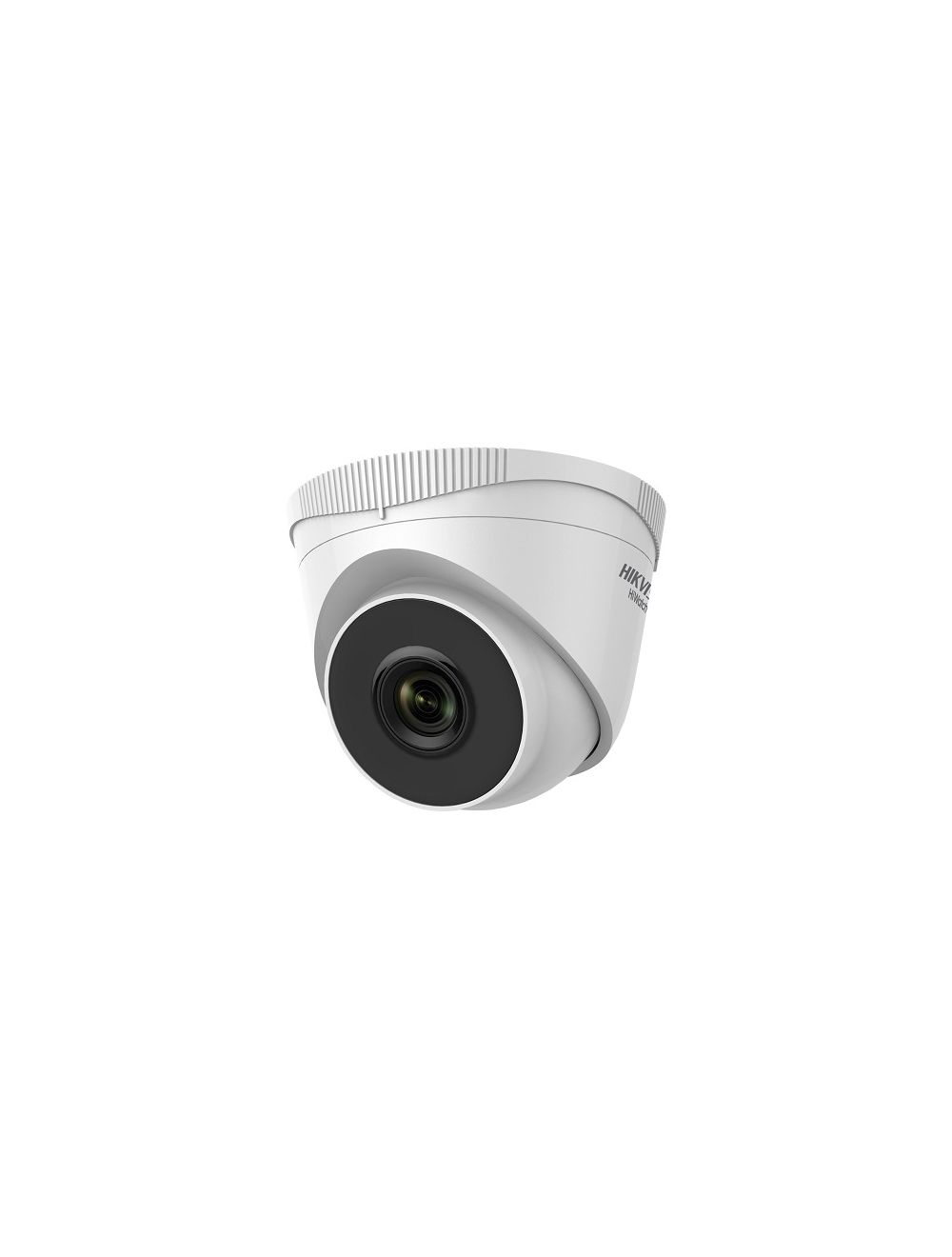

Hikvision HWI-T221H HiWatch Network Turret camera

€ 97,01

This product is no longer available. Replacement is: HWI-T220HA (2.8MM).

HiWatch Series: 2 Megapixel IR Network Turret camera
Beschikbaarheid: Niet op voorraad
SKU
HWI-T221H

This product is no longer available. Replacement is: HWI-T220HA (2.8MM).

  • 1/2.8" progressive scan CMOS
  • 1920 × 1080@30fps
  • 2.8 mm fixed lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • DWDR
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • Power supply not included
  • IP67

Lees meer over / read more about Hikvision HiWatch series

Meer informatie
SKU HWI-T221H
Merk Hikvision
EANcode 6954273677176
HWI-T221H
Camera
Image sensor 1/2.8"CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Day&Night IR cut filter
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) DWDR
Angle adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal lenght 2.8mm
Aperture F2.0
Focus fixed
FOV 2.8 mm, horizontal FOV 115°, vertical FOV 62°, diagonal FOV 136°
IR
IR Range Up to 30m
Wavelength 850nm
Compression standard
Video compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
H.264 type Baseline Profile/Main Profile/High Profile
H.264 type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of interest 1 fixed region for main stream and sub-stream
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 x 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled, day, night
Network
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API ONVIF, ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web browser IE, Chrome, Firefox, Safari
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating conditions -30 °C to 60 °C, humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.3 A, Max: 3.5 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Ingress Protection level IP67
Material Camera body: metal, bottom base: plastic
Dimensions Camera: Ø 110 mm × 93.2 mm
With package: 150 mm × 150 mm × 141 mm
Weight Camera: approx. 360 g.
With package: approx: 610 g



U kunt deze gegevens ook terugvinden in de datasheet.

Bekijk hier de handleiding van de netwerk camera.
Beide zijn ook te vinden onder Support/Downloads/Hikvision.
