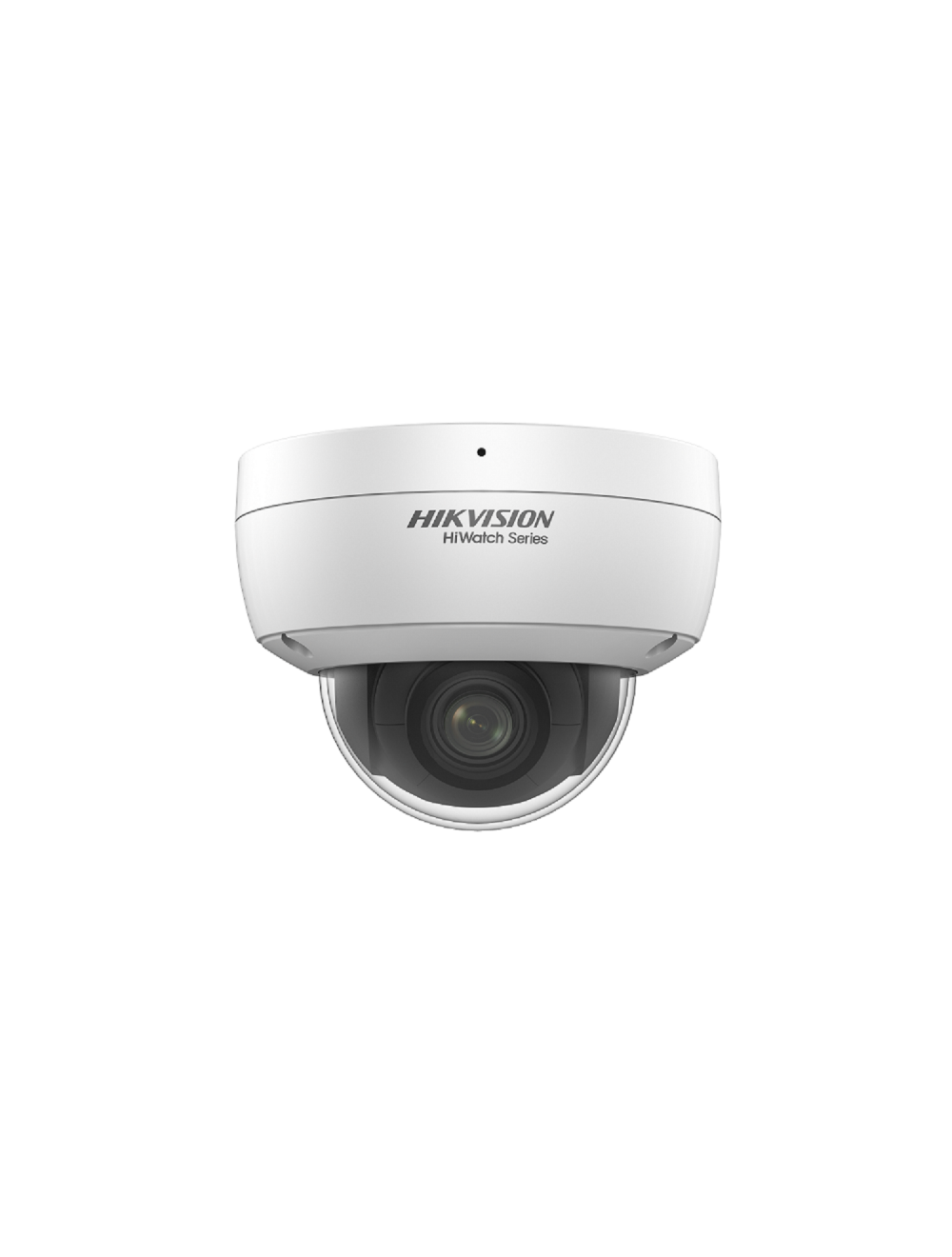

HWI-D720H-Z |
Camera |
Appearance |
Dome |
Image sensor |
1/2.8" progressive scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.025Lux @ (F1.9, AGC ON) |
Shutter Speed |
1/3s to 1/100,000s |
Slow Shutter |
Yes |
Auto-Iris |
No |
Day&Night |
IR cut filter |
DNR (Digital Noise Reduction) |
3D DNR |
WDR (Wide Dynamic Range) |
Digital WDR |
Angle adjustment |
Pan: 0° to 355°, tilt: 0° to 75° |
Lens |
Focal length |
2.8 to 8 mm |
Aperture |
F1.9 |
Focus |
Auto |
Angle of View |
Horizontal Field of View: 111° to 54.7° Vertical FoV 57.8° to 30.5° Diagonal FoV 134° to 63° |
Lens mount |
Ø14 |
IR
|
IR Range |
Up to 20m |
Wavelength |
850nm |
Compression standard |
Video compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
H.264 type |
Baseline Profile/Main Profile/High Profile |
H.264+ |
Main stream supports |
H.264 type |
Main Profile |
H.265+ |
Main stream supports |
Video Bit Rate |
32 Kbps to 8 Mbps |
Smart Feature-Set |
Region of Interest |
1 fixed region for main stream |
Image |
Max. Resolution |
2 MP (1920 x 1080) |
Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 x 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 x 960, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Image Enhancement |
BLC, 3D DNR |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night switch |
Day/Night/Auto/Schedule |
Network |
Network Storage |
Support micro SD/SDHC/SDXC card (128G), local storage and ANR |
Alarm Trigger |
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
General Function |
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
API |
ONVIF, ISAPI |
Simultaneous Live View |
Up to 6 channels |
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
Client |
iVMS-4200, Hik-Connect |
Web browser |
IE, Chrome, Firefox |
Interface |
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Audio |
Built-in mic |
Reset button |
Yes |
On-board storage |
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB |
Audio |
Environment Noise Filtering |
Yes |
Audio Sampling Rate |
8 kHz/16kHz/32kHz/44.1 kHz/48 kHz |
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM |
Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
General |
Operating conditions |
-30 °C to 45 °C, humidity: 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption |
12 VDC, 0.8 A, Max: 10 W PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W |
Ingress Protection |
IP67 |
Impact protection |
IK10 |
Material |
Bubble: plastic, Front cover: metal, bottom base: metal |
Dimensions |
Camera: Ø 121 mm × 92 mm |
Weight |
Approx. 400 g |
