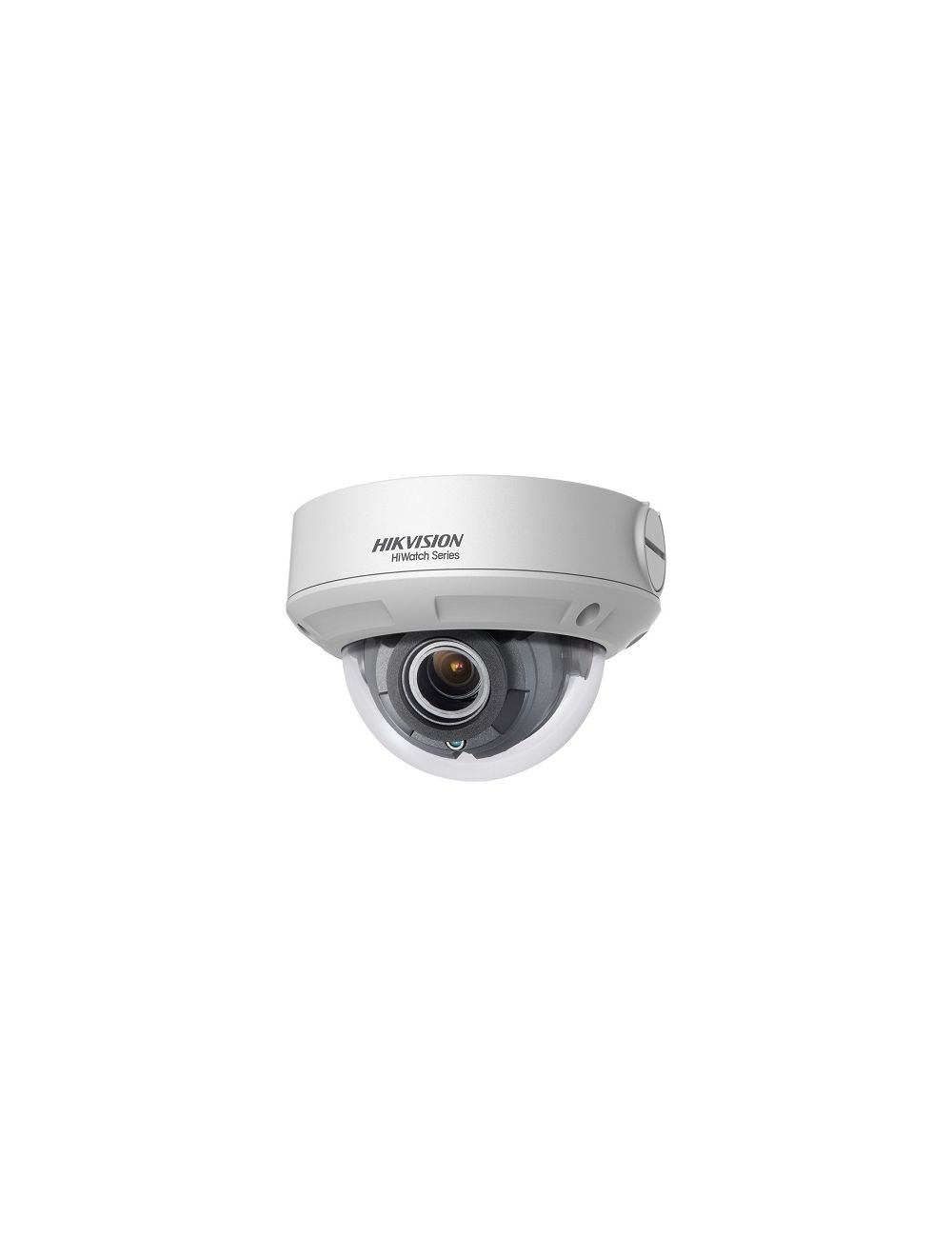

Hikvision HWI-D640H-Z HiWatch Motorized Network Dome camera
€ 231,30
HiWatch Series: 4 Megapixel Motorized Network Dome camera
Beschikbaarheid:
Op voorraad
SKU
HWI-D640H-Z(C)
- 1/3" progressive scan CMOS
- 2560 × 1440@20fps
- 2.8 mm to 12 mm motorized varifocal lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- PoE (Power over Ethernet)
- Power supply not included
- IP67
Lees meer over / read more about Hikvision HiWatch series
SKU | HWI-D640H-Z(C) |
---|---|
Merk | Hikvision |
EANcode | 6931847126704 |
HWI-D640H-Z | |
Camera | |
Image sensor | 1/3" progressive scan CMOS |
Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
Day&Night | IR cut filter |
DNR (Digital Noise Reduction) | 3D DNR |
WDR (Wide Dynamic Range) | 120 dB |
Angle adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360° |
Lens | |
Focal length | 2.8 to 12 mm |
Aperture | F1.6 |
Focus | Auto |
Angle of View | Horizontal Field of View: 98° to 28°, vertical FoV 51° to 16°, diagonal FoV 115° to 32° |
Lens mount | Ø14 |
IR |
|
IR Range | Up to 30m |
Wavelength | 850nm |
Compression standard | |
Video compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
H.264 type | Baseline Profile/Main Profile/High Profile |
H.264+ | Main stream supports |
H.264 type | Main Profile |
H.265+ | Main stream supports |
Video Bit Rate | 32 Kbps to 8 Mbps |
Smart Feature-set | |
Region of interest | 1 fixed region for main stream and sub-stream |
Image | |
Max. Resolution | 4 MP (2560 x 1440) |
Main Stream Max. Frame Rate |
50Hz: 20fps (2560 × 1440), 25fps (1920 × 1080, 1280 x 960, 1280 × 720) 60Hz: 20fps (2560 × 1440), 30fps (1920 × 1080, 1280 x 960, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Image Enhancement | BLC, 3D DNR |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/night switch | Auto, scheduled |
Network | |
Network Storage | Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
API | ONVIF, ISAPI |
Simultaneous Live View | Up to 6 channels |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
Client | iVMS-4200, Hik-Connect |
Web browser | IE, Chrome, Firefox |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Reset button | Yes |
On-board storage | Built-in micro SD/SDHC/SDXC card slot, up to 128 GB |
General | |
Operating conditions | -30 °C to 50 °C, humidity: 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption | 12 VDC, 0.8 A, Max: 10 W PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W |
Ingress Protection level | IP67 |
Impact Protection | IK10 |
Material | Metal & Plastic |
Dimensions | Camera: Ø 141.2 mm × 99.6 mm |
Weight | Camera: approx. 820 g. With package: approx: 1200 g |
Bekijk hier de handleiding van de netwerk camera.
HiWatch Highlights
