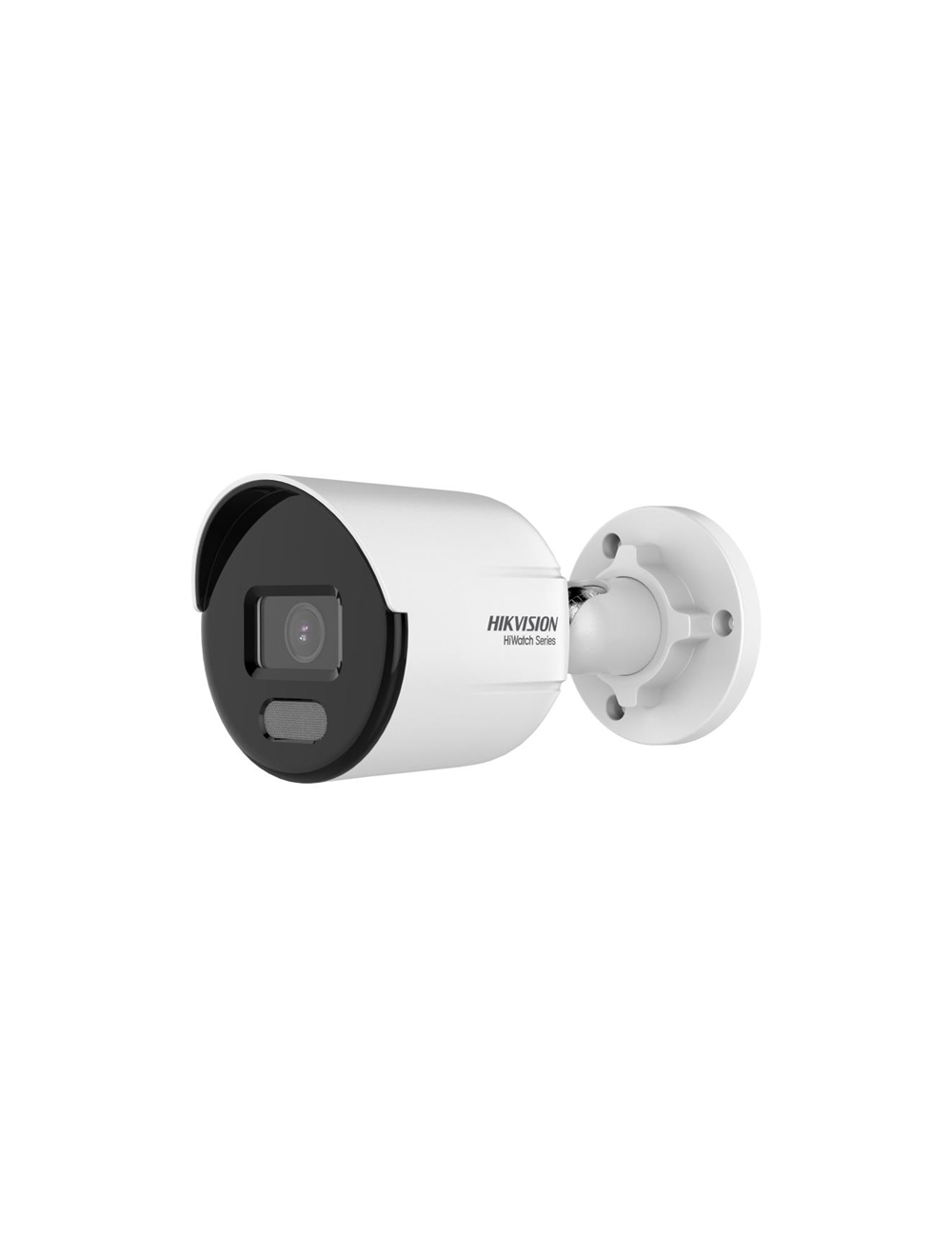

Hikvision HWI-B149HA, 4MP ColorVu MD 2.0 Fixed Bullet camera

€ 178,00
HiWatch Series: 4 Megapixel ColorVu F1.0 bullet camera with 24/7 colorful imaging
Beschikbaarheid: Op voorraad
SKU
HWI-B149HA(2.8MM)

HWI-B149HA

Fixed network bullet camera with ColorVu technology. Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to provide brighter images. Advanced sensor technology can vastly improve utilization of available light.

Some other features

  • 1/3" progressive scan CMOS
  • 2560 × 1440
  • 2.8 mm fixed lens
  • Horizontal FOV 96°; Vertical FOV 52°; Diagonal FOV 113°
  • Motion detection (support alarm triggering by specified target types, human and vehicle), video tampering alarm, exception
  • Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Efficient H.265+ compression technology
  • Smart supplement light, white light range up to 30 m
  • Water and dust resistant (IP67)

Read more about Hikvision HiWatch series

Meer informatie
SKU HWI-B149HA(2.8MM)
Merk Hikvision
EANcode 6931847178482
HWI-B149HA-2.8MM
Camera
Image sensor 1/3"CMOS
Max Resolution 2560 x 1440
Day&night 24/7 color imaging
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with light
Shutter time 1/3s to 1/100,000s
Day&Night IR cut filter
Angle adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens type Fixed focal lens, 2.8mm
Aperture F1.0
Iris type fixed
Lens mount M12
FOV 2.8mm: Horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113°
DORI
DORI D: 64m, O: 25m, R: 12m, I:6m
Illuminator
Supplement light type White light
Supplement light range Up to 30m
Smart supplement light Yes
Video
Main stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 type Baseline profile/Main profile/High profile
H.265 type Main profile
Bit rate control CBR/VBR
Region of interest (ROI) 1 fixed region for main stream
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Privacy mask 4 programmable polygon privacy masks
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP,  SMTP
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Web browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Client iVMS-4200, Hik-Connect
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic event Motion detection (support alarm triggering by specified target types, human and vehicle), video tampering alarm, exception
Linkage Upload to FTP, send email, notify surveillance center, trigger capture
General
Storage conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and operating conditions -30 °C to 60 °C, humidity: 95% or less (non-condensing)
Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, max. 6.5 W
Material Aluminum alloy body
Dimensions Camera: ∅76.6 mm × 164.4 mm
With package: 234 mm × 120 mm × 117 mm
Weight Camera: approx. 420 g
With package: approx: 630 g
General function Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
Safety CE-LVD (EN 62368-1:2014/A11:2017)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
