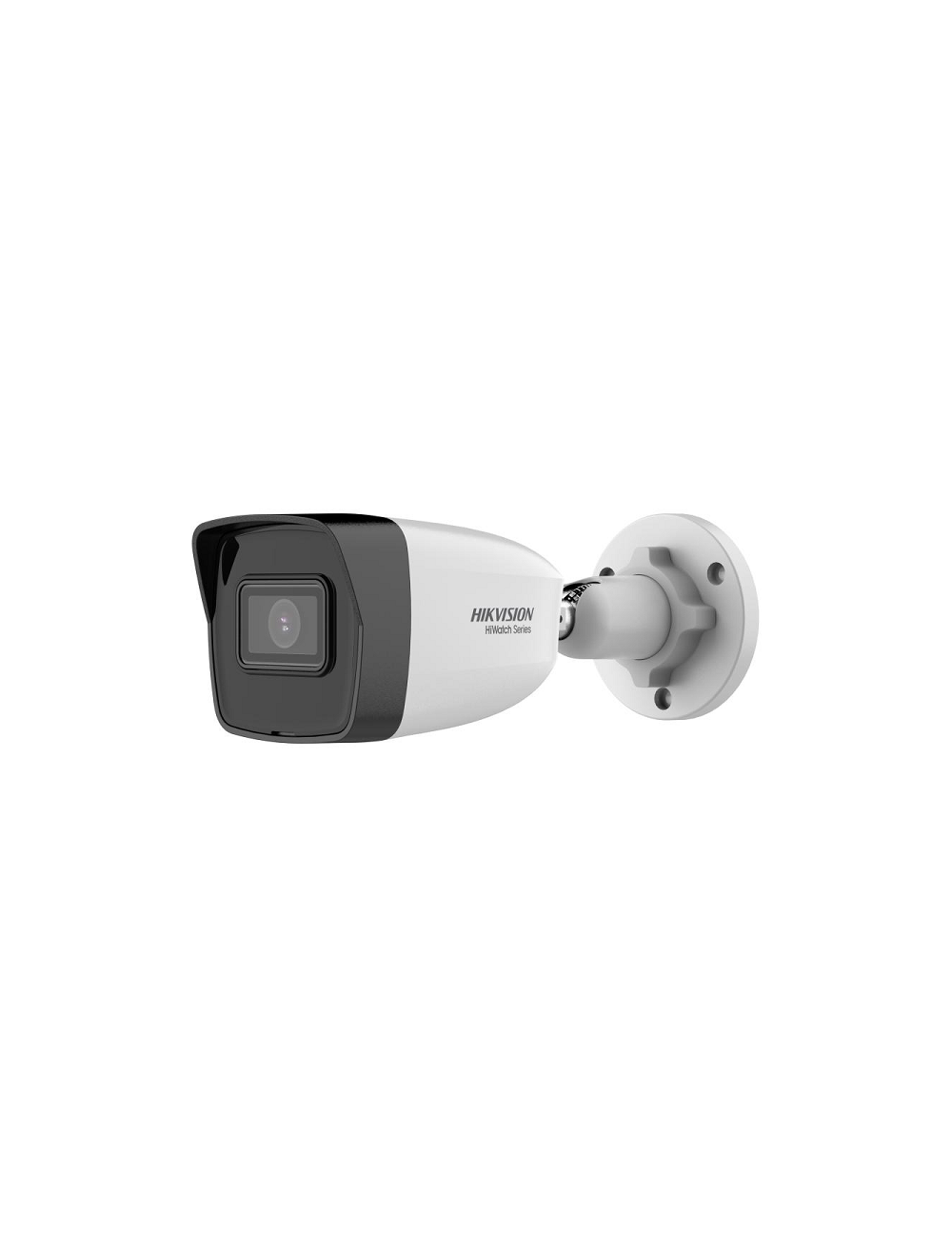

Hikvision HWI-B120HA (2.8mm), 2MP fixed bullet HiWatch network camera
€ 93,50
HiWatch Series: 2 Megapixel Network Bullet camera, human and vehicle detection
Beschikbaarheid:
Op voorraad
SKU
HWI-B120HA(2.8MM)
Bijpassende producten
Selecteer items om ze aan het mandje toe te voegen of
- High quality imaging with 2MP resolution
- 2.8 mm fixed lens
- Efficient H.265+ compression technology to save bandwith and storage
- Support Human and vehicle detection
- Water and dust resistant (IP67)
- Easy installation with PoE technology
Lees meer over / read more about Hikvision HiWatch series
| SKU | HWI-B120HA(2.8MM) |
|---|---|
| Merk | Hikvision |
| EANcode | 6931847181338 |
| HWI-B120HA (2.8MM) | |
| Camera | |
| Image sensor | 1/2.9" progressive scan CMOS |
| Max resolution | 1920 x 1080 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter time | 1/3s to 1/100,000s |
| Day&Night | IR cut filter |
| Angle adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° |
| Lens | |
| Lens type | Fixed focal lens |
| Focal length & FOV | 2.8mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° |
| Aperture | F2.0 |
| Lens mount | M12 |
| Iris type | Fixed |
| DORI | |
| DORI | 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m |
| IR |
|
| Supplement Light type | IR |
| Supplement Light range | Up to 30m |
| Smart supplement light | √ |
| IR Wavelength | 850nm |
| Video | |
| Main stream | 50Hz: 25fps (1920 × 1080, 1280 x 720) 60Hz: 30fps (1920 × 1080, 1280 x 720) |
| Sub stream | 50Hz: 25fps (640 × 480, 640 × 360) 60Hz: 30fps (640 × 480, 640 × 360) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 type | Baseline Profile/Main Profile/High Profile |
| H.265 type | Main Profile |
| Bit Rate control | CBR/VBR |
| Region of Interest | 1 fixed region for main stream |
| Image | |
| WDR | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Privacy mask | 4 programmable polygon privacy masks |
| Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IGMP, IPv6, QoS, UDP, FTP, SMTP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect |
| Web browser | Chrome, Firefox Plug-in required live view: IE10, IE11 |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, trigger capture, send email |
| General | |
| Storage conditions | -30 °C to 60 °C Humidity: 95% or less (non-condensing) |
| Startup and operating conditions | -30 °C to 60 °C Humidity: 95% or less (non-condensing) |
| General function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Power | 12 VDC ± 25%, 0.4 A, ∅5.5 mm coaxial plug PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Metal & plastic |
| Dimensions | 184.1 × 66 x 69.1mm |
| Weight | approx. 275g |
| Approval | |
| Protection Level | IP67 |
| Environment | Ce-RoHS, WEEE |
U kunt deze gegevens ook downloaden (pdf)
Bekijk hier de handleiding van de netwerk camera.
Beide zijn ook te vinden onder Support/Downloads/Hikvision.
