Ezviz DB1C, WiFi Videodeurbel set

€ 149,99
Ezviz DB1C Videodeurbel set bestaande uit deurbel, gong en transformator
Beschikbaarheid: Op voorraad
SKU
EZVIZ-DB1C-KIT

Ezviz DB1C Videodeurbel set

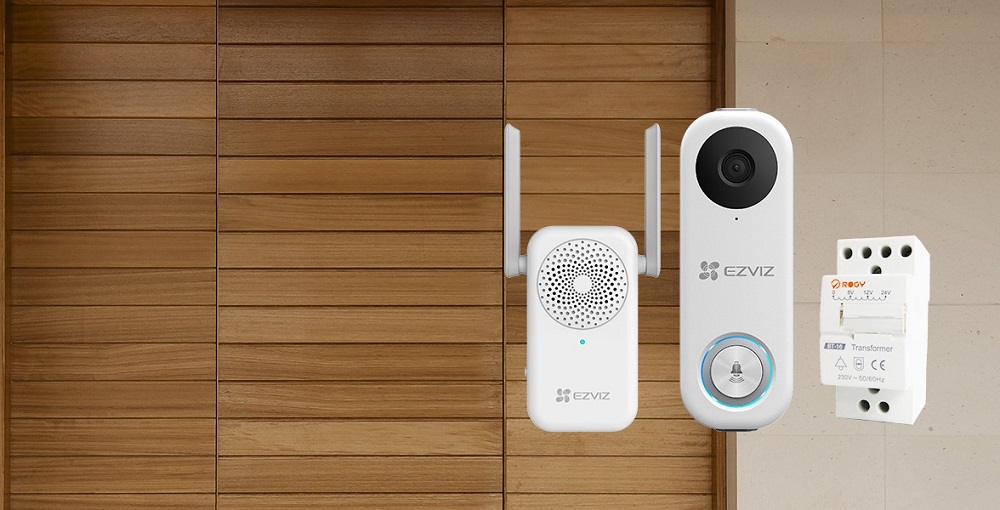

Complete beveiliging met dit 3-in-1 pakket!

In dit pakket vind je een WiFi video deurbel, een gong en een standaard transformator.

DB1C Kit

De transformator zet 230 Volt netspanning om naar 8, 12 of 24 Volt wisselspanning. Deze standaard transformator geeft constante stroomvoorziening die er voor zorgt dat de DB1C deurbel correct en veilig werkt.

Overzicht Ezviz producten

Meer informatie
SKU EZVIZ-DB1C-KIT
Merk Ezviz
EANcode 6941545604565
  • DB1C + Chime+ Transformer;

DB1 video doorbell:

  • Image Sensor: 1/2.4" Progressive Scan CMOS;
  • Lens 2.1 mm @ F2.4,
  • View angle: 170° (Vertical)
  • Day & Night IR-cut filter with auto-switching
  • Night Vision Max. 5 m
  • Video: Max. Resolution 1536 x 1536
  • DNR 3D DNR
  • WDR Digital WDR
  • Video Compression H.265 / H.264
  • Frame Rate Max: 15 fps Self-adaptive during network transmission
  • Motion detection (with person shape detection)
  • Long distance video two-way talk
  • Wi-Fi: Wireless IEEE802 11a/b/g/n
  • 2.4 and 5 GHz dual band WiFi
  • Channel Bandwidth Supports 20 MHz;
  • Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
  • Working Temperature -10 °C to 45 °C
  • Working Humidity 95% or less (non-condensing)
  • Power Supply AC 12 V to 24 V (220 mAh backup battery)
  • IP Grade IP65
  • Weight 102g

Chime:

  • Working Temperature -10 °C to 40 °C
  • Working Humidity 95% or less (non-condensing)
  • Power Supply 100V- 220V AC
  • Power consumption max 0.6W
  • Weight 120g
  • WiFi Standard IEEE802 11a/b/g/n
  • Frequency range 2.4 GHz ~ 2.4835 GHz
  • Supports 20 MHz channel bandwidth
  • Dual External antennas
  • Protocol / Interface Protocol: EZVIZ cloud proprietary protocol
  • Storage: No
  • Wired network: does not support

Transformer:

  • Rated Input Voltage: 230V AC
  • Rated Output Voltage: 8V, 12V, 24V AC
  • Rated Frequency: 50 Hz
  • Rated Power Output 8V: 10VA; 12V: 20VA; 24V: 30VA
  • Power Consumption 1.15 W
  • Service Period: Continuous operating
  • Connection Terminals: Pillar terminal with clamp
  • Connection Capacity: Rigid conductor 10 mm²
  • Installation: On symmetrical DIN rail 35 mm panel mounting
  • Terminal Connection Height H=15.5 mm
  • Operating Conditions -5 °C to 40 °C, Humidity 95 % or less
  • Dimensions 35.3 x 86 x 68 mm
  • Net Weight 323 g
