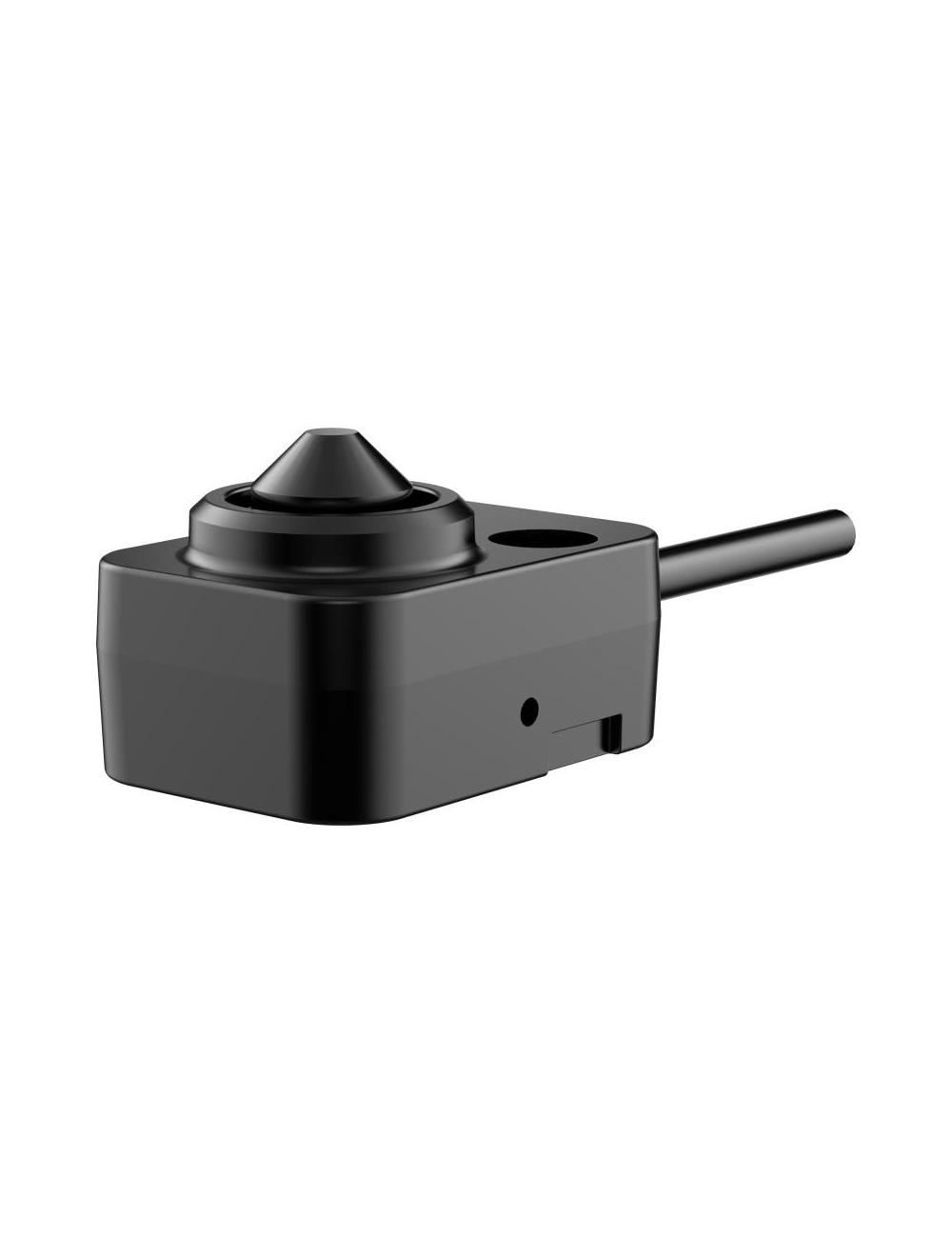

Hikvision DS-2CD6425G1-20 seperated pinhole network camera

€ 479,95
Informeer naar levertijd / Please inquire about delivery time
Beschikbaarheid: Niet op voorraad
SKU
DS-2CD6425G1-20(2.8MM)8M

Informeer naar levertijd / Please inquire about delivery time



DS-2CD6425G1-20

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Audio and alarm interface available
  • 3D DNR technology delivers clean and sharp images
  • 8 meter cable

Meer informatie
SKU DS-2CD6425G1-20(2.8MM)8M
Merk Hikvision
DS-2CD6425G1-20
Camera
Image sensor 1/2.8" CMOS
Max Resolution 1920x1080
Min. Illumination Color: 0.02 Lux @(F1.2, AGC ON)
Shutter time 1/3s to 1/100,000s
Lens
Focal length & FOV
L20 model
2.8mm, horizontal FOV 93.9°, vertical FOV 51.7°, diagonal FOV 109.3°
Lens mount L20 model Mini
Aperture L20 model F2.5
Iris type Fixed
DORI
DORI L20 model D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m
Illuminator
Supplement light type IR
Range Up to 30m
Smart supplement light Yes
IR Wavelength 850nm
Video
Main stream 50Hz: 25fps (1920x1080, 1280x720)
60Hz: 30fps (1920x1080, 1280x720)
Sub stream 50Hz: 25fps (640x480, 640x360, 320x240)
60Hz: 30fps (640x480, 640x360, 320x240)
Third stream 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main profile
Bit rate control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of interest (ROI) Support 1 fixed region for main stream
Audio
Audio Type Mono
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling rate 8 kHz/16 kHz/32 kHz
Environment Noise filtering
WDR 120 dB
Image parameters switch Yes
Image Enhancement BLC, HLC, defog, 3D DNR
Image Settings Saturation, brightness, contrast and sharpness adjustable by client software or web browser
Day/Night Switch Day, night, auto, scheduled
Privacy mask Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live view Up to 15 channels
API Open network video interface, ISAPI, SDK, ISUP 5.0
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Network storage NAS (NFS, SMB/CIFS)
Client iVMS-4200, Hik-Connect
Web browser Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Event
Basic event Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
Smart Event

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection;
Audio exception detection, defocus detection, scene change detection

Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board storage Built-in memory card slot, support MicroSD/MicroSDHC/MicrosSDXC, up to 256GB
Audio 1 input (line in), 1 output (line out)
Alarm 1 input, 1 output (max 12 VDC, 30mA)
RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset key Yes
General
Storage conditions -30 °C to 60 °C, humidity 95% or less (non-condensing)
Startup and operating conditions -30 °C to 60 °C, humidity 95% or less (non-condensing)
Power 12 VDC ± 20%, 0.25A, max. 3W, two-core terminal block
PoE 802.3af, Type 1, class 3, 36V to 57V, 0.1A to 0.07A, max 3.65W
Ingress Protection IP67
Material Metal & plastic
Dimensions Main body: 77.5 mm × 69 mm × 26 mm
L20: 37 mm × 26 mm × 25 mm
Weight Main body approx. 90 g. Camera approx: 90 g
General function One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
Length of lens cable 8 m
Approval
Environment CE-RoHS, WEEE, Reach
